Julldent Sonic Pneumatic Elevator Kit # 204

Description

Julldent Sonic Pneumatic Elevator Kit #204 is an advanced dental tool designed for precision and efficiency in tooth extraction procedures. It operates through a pneumatic system, allowing smooth, controlled movement for accurate placement in the periodontal space. The kit includes a pen-shaped handle and a straight blade that can be inserted into the periodontal gap with minimal force. The pneumatic drive ensures precise wedging of the blade, facilitating easy tooth extraction while minimizing damage to surrounding bone structures. The design prioritizes safety, with special attention to avoiding critical areas such as the maxillary sinus and neural tube. Its ergonomic design and reliable pneumatic function make it an essential tool for modern dental practices.

Key Features

• Provides smooth and precise tooth extractions with pneumatic-driven operation.
• Features an ergonomic, pen-shaped handle for comfortable and accurate handling.
• Allows adjustable blade depth up to 1.2 mm for customized extraction needs.
• Made from high-grade stainless steel for enhanced durability and longevity.
• Includes a universal connector for secure attachment to dental treatment machines.
• Equipped with manual controls for cooling water and atomization gas.
• Designed with safety features to prevent damage to critical areas like the maxillary sinus and neural tube.

Specifications

• Drive Mechanism: Pneumatic-driven
• Handle Design: Pen-shaped ergonomic handle
• Blade Type: Straight blade
• Wedge Depth: Adjustable, up to 1.2 mm
• Pressure Requirement: Minimum 0.3 MPa air pressure
• Cooling System: Manual control for cooling water and atomization gas
• Connection Type: Universal connector for dental treatment machines
• Safety Features: Protection against maxillary sinus and neural tube damage
• Usage: Tooth extraction in hard-to-reach areas
• Adjustment Mechanism: Tappet rotation for fine positioning of the blade
• Material: High-grade stainless steel
• Movement Range: Slight movement in push-pull head, secure locking mechanism

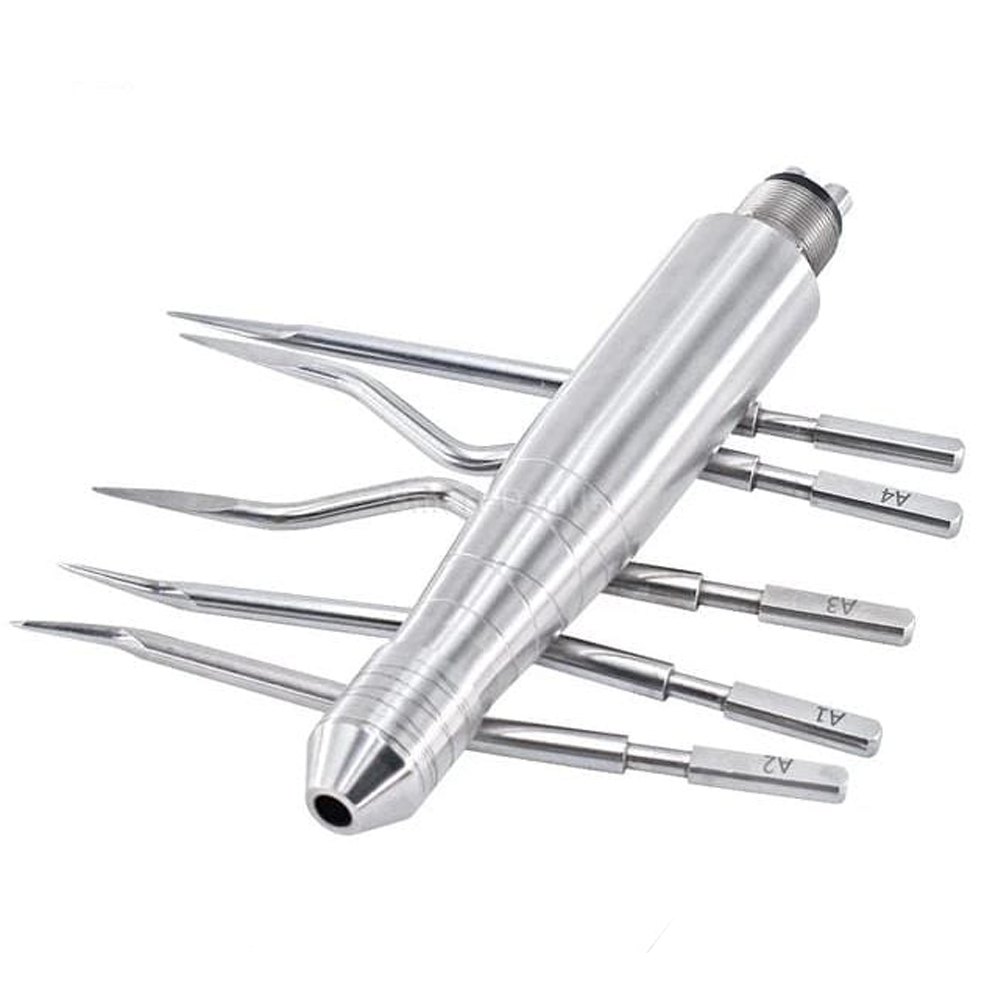

Packaging

• 1 x Sonic Pneumatic Elevator
• 5 x Tips (A1, A2, A3, A4, A5)

Directions for Use

Preparation:

• Turn off the cooling water and atomization switches.
• Select a suitable lifter based on the position of the patient’s extracted teeth.
• Connect the dental pneumatic source connector to the universal connector of the dental treatment machine, ensuring a tight fit.

Installation:

• Grip the handle firmly with one hand.
• Align the tail of the head with the link hole and insert it while turning slightly until the head is in position. The head should not rotate freely.
• Loosen the tappet lock sleeve to allow it to reset automatically.
• Ensure that the push-pull head has a slight range of movement but remains securely in place.

Debugging:

• Confirm that the cooling water and atomization gas switches are off.
• Step on the pedal to test the pneumatics, checking for normal operation.
• Inspect the connection for any leaks at the gas source connection head.
• Verify that the air pressure indicator reads above 0.3 MPa during operation; adjust if necessary.

Operation:

• Use the pen-shaped handle to position the sharp edge of the blade in the periodontal space, ensuring the blade plane is aligned with the teeth.
• Step on the pedal to wedge the sharp edge to a depth of approximately 1.2 mm.
• Rotate the tappet within a small range to increase the gap. Ensure the tappet remains centered in the periodontal gap.
• Assess the gap size and avoid clamping the tappet. Repeat the process as needed, adjusting the wedge position similarly.
• For first-time use, wedge slightly shallower to avoid over-insertion.

Safety Precautions:

• Ensure the blade enters the periodontal space pneumatically and avoid damaging the maxillary sinus or neural tube.
• Use caution when applying force, particularly near thinner bone plates.
