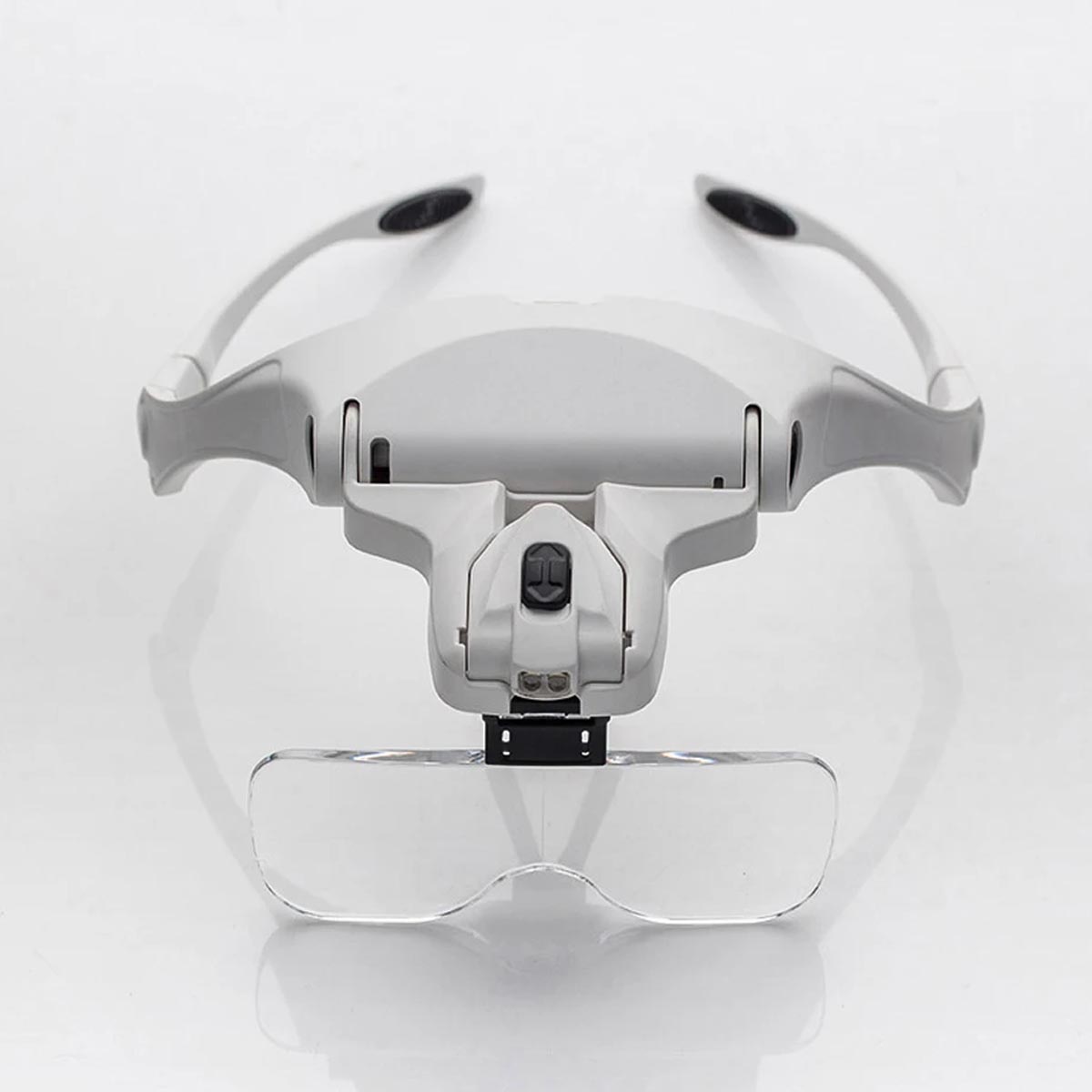

Jinguang Dental Loupes With LED Light And 5 Lenses 1.0x 1.5x 2.0x 2.5x 3.5x

Description

Jinguang Dental Loupes with LED light and multiple magnification options are indispensable tools for performing root canal procedures with unparalleled precision and efficiency. Crafted from durable ABS and acrylic optical lens materials, these loupes ensure durability and clarity, enhancing the dentist’s ability to visualize and treat intricate root canal systems.

Featuring five interchangeable lenses offering magnifications from 1.0X to 3.5X, these loupes provide enhanced visibility of the tooth structure, facilitating the identification and treatment of canal irregularities, obstructions, and accessory canals with exceptional detail and accuracy.

The non-fall structure ensures secure interlocking of the lens and holder, guaranteeing stability during installation and allowing dentists to focus on the task at hand without interruptions. Additionally, adjustable glasses legs, a headband, and a comfort-fit nose bridge ensure prolonged comfort, enabling dentists to perform root canal procedures with ease and precision for extended periods. The integrated LED light, controlled by a convenient push-type ON/OFF button, offers consistent and shadow-free illumination of the treatment area, ensuring optimal visibility even in challenging clinical conditions. Combined with adjustable lens and LED light angles, dentists can customize the lighting and observation angles to suit their preferences, further enhancing procedural outcomes.

Key Features

• Interchangeable magnification lenses for versatile use.
• Secure click-lock mechanism for stable installation.
• Adjustable glasses legs and headband for comfort.
• Precision LED illumination with adjustable angle.
• Durable H5 hard lens surface for protection.
• Long-lasting battery power with AAA batteries.
• Versatile application for various dental procedures.

Specifications

• Material: ABS, acrylic optical lens
• Battery: 3 x AAA battery (not included)
• Lens Type: Interchangeable
• Structure: Non-Fall
• Comfort: Adjustable glasses legs and headband, comfort fit nose bridge
• LED Light: 2 high-brightness LEDs with adjustable angle
• Lens Surface: H5 Hard
• Power Supply: 3 x AAA battery

Packaging

• 1x Dental Loupes
• 5x Magnifying lens (1.0x, 1.5x, 2.0x, 2.5x, 3.5x)
• 2x LED Lights
• 1x Head Band

Directions for Use

Adjustment of Magnification and Lens:

• Choose the appropriate magnification lens from the set of interchangeable lenses (1.0X, 1.5X, 2.0X, 2.5X, or 3.5X) based on the desired level of magnification.
• Firmly interlock the selected lens with the lens holder by aligning them and listening for a crisp click sound during installation.

Comfortable Wear:

• Adjust the glasses legs and headband to achieve a comfortable fit.
• Ensure the nose bridge with comfort fit rests comfortably on the nose for prolonged use without discomfort.

Adjustment of Lens and LED Light Angle:

• Use the adjustable knobs or mechanisms to modify the angle of both the lens and LED light according to your preference.
• Position the light source precisely to cast illumination on the object to be observed for optimal visibility.

Activation of LED Light:

• Locate the push-type ON/OFF button for the LED light.
• Press the button to activate the LED light, providing bright illumination for enhanced visibility during procedures.

Procedure Execution:

• Position the loupe over the treatment area, ensuring the illuminated field encompasses the region of interest.
• Utilize the magnified view provided by the loupes to perform precise and accurate dental procedures, such as root canal therapy, with improved clarity and detail.

Battery Replacement:

• When the LED light begins to dim or flicker, replace the three AAA batteries located in the battery compartment (batteries not included).

Cleaning and Maintenance:

• After each use, wipe the lenses and surfaces of the loupes with a clean, soft cloth to remove any debris or residue.
• Store the loupes in a clean and dry environment to prevent dust accumulation and damage.

Additional Information

Country of Origin: PRC

Manufacturer:
Jinguang
Daqiao Road, Xingyuanchang Village, Daqiao New District, Jiangxia District, Wuhan City, PRC

Packer:
Jinguang
Daqiao Road, Xingyuanchang Village, Daqiao New District, Jiangxia District, Wuhan City, PRC

Marketed By:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farrukhnagar, Gurugram, Haryana – 122506, India
Phone: +91 72899 99456

Warranty & Service

• 6 months warranty
