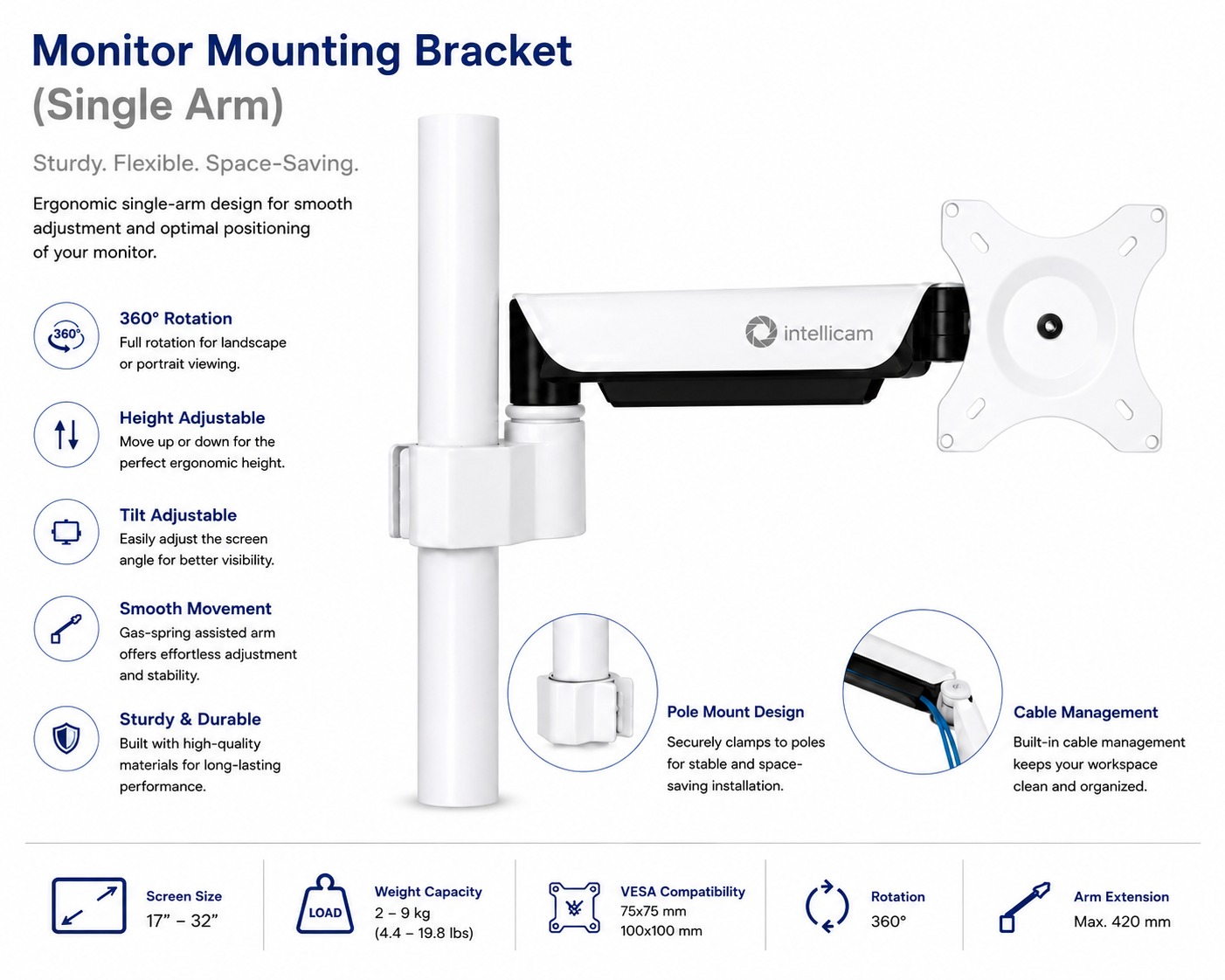

Intellicam Single Arm Mechanical Monitor Mounting Bracket (MUS-M1)

Description

The Intellicam Single Arm Mechanical Monitor Mounting Bracket (MUS-M1) is designed to hold an intraoral camera monitor or compact display with easy, ergonomic positioning in the dental operatory. Built from a high-quality metal main body wrapped in a clean plastic outer frame, it delivers dependable strength while keeping a tidy clinical look. The single mechanical arm supports free rotation and arbitrary up-and-down angle adjustment, letting the operator quickly set the screen to a comfortable viewing position and keep working with minimal effort. A C-clamp mounting head fixes the bracket securely onto a trolley post or worktop edge, making installation simple and space-saving. The metal structure is tempered for hardness and fatigue resistance, supporting reliable daily use over the long term. A standard 100×100 mm VESA plate ensures compatibility with most compact monitors and intraoral camera screens, making the MUS-M1 a practical, high-end mounting solution.

Key Features

• Single mechanical arm for easy, comfortable screen positioning
• Free rotation with arbitrary up and down angle adjustment
• High-quality tempered metal main body with durable plastic outer frame
• Fatigue-resistant construction built for reliable long-term daily use
• C-clamp mounting head for secure, space-saving attachment to a post or edge
• Standard 100×100 mm VESA plate for wide monitor compatibility

Specifications

• Model: MUS M1
• Mount Type: Desk Clamp Mount
• VESA Support: 100×100 mm
• Rotation: 360°
• Tilt: Adjustable
• Material: Metal Core with Plastic Cover
• Clamp / Base Material: Aluminium Alloy
• Application: Monitor / Display Mount
• Max Load Capacity: 8 kg (Recommended)
• Compatible Screen Size: 13″ – 32″

Packaging

• 1 x Single Arm Mechanical Main Body
• 1 x Monitor Mount Plate (VESA Plate)
• 1 x Desk Clamp / Mounting Base
• 1 x Screws and Fasteners Set
• 1 x Key Tool
• 1 x Installation Guide

Compatible with Intellicam Smart WiFi Intraoral Camera System – 17″ HD Display (MUS-Q5)

Directions for Use

Step 1 — Fix the C-clamp

• Open the C-clamp and seat it over the trolley post or table edge. Tighten the clamp bolt firmly by hand until the mount is fully secure and does not wobble. Do not overtighten to the point of cracking the surface.

Step 2 — Attach the arm to the clamp

• Insert the arm’s lower joint post into the clamp’s receiving hole. Line up the connecting pin/bolt holes and secure with the supplied pin and washer/screw so the arm sits upright and can rotate freely.

Step 3 — Mount the VESA plate to the monitor

• Hold the VESA plate against the four mounting holes on the back of the monitor. Fasten it with the supplied VESA screws (with washers if provided), tightening each screw evenly and gently until snug — avoid overtightening into the monitor casing.

Step 4 — Join the monitor to the arm head

• Slide/fit the VESA plate assembly onto the arm’s front joint (the ball/rotary head). Insert and tighten the locking screw so the monitor is held securely but can still tilt and rotate.

Step 5 — Adjust and test

• Set the arm rotation and the up/down tilt to your preferred viewing angle. Gently move the monitor through its full range to confirm every joint holds position and nothing slips. Re-tighten any screw that feels loose.

After installation

• Re-check the clamp bolt and all joint/VESA screws after the first day of use, as fittings can settle. Recheck periodically thereafter

Additional Information

Country of Origin: PRC

Manufacturer:
Yiwu Kan Shi Trading Firm
No. 5, Lane 2, Lianer Lian Da Road, Dafu Village,
Zhangcha Street, Chancheng District, Foshan City, Guangdong Province,

Packer:
Yiwu Kan Shi Trading Firm
No. 5, Lane 2, Lianer Lian Da Road, Dafu Village,
Zhangcha Street, Chancheng District, Foshan City, Guangdong Province,

Imported & Marketed By:
VASA Denticity Limited
Khasra No. 15/1, Mustil No. 6, Village Dabodha,
Farrukhnagar, Gurugram, Haryana 122506, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product.
