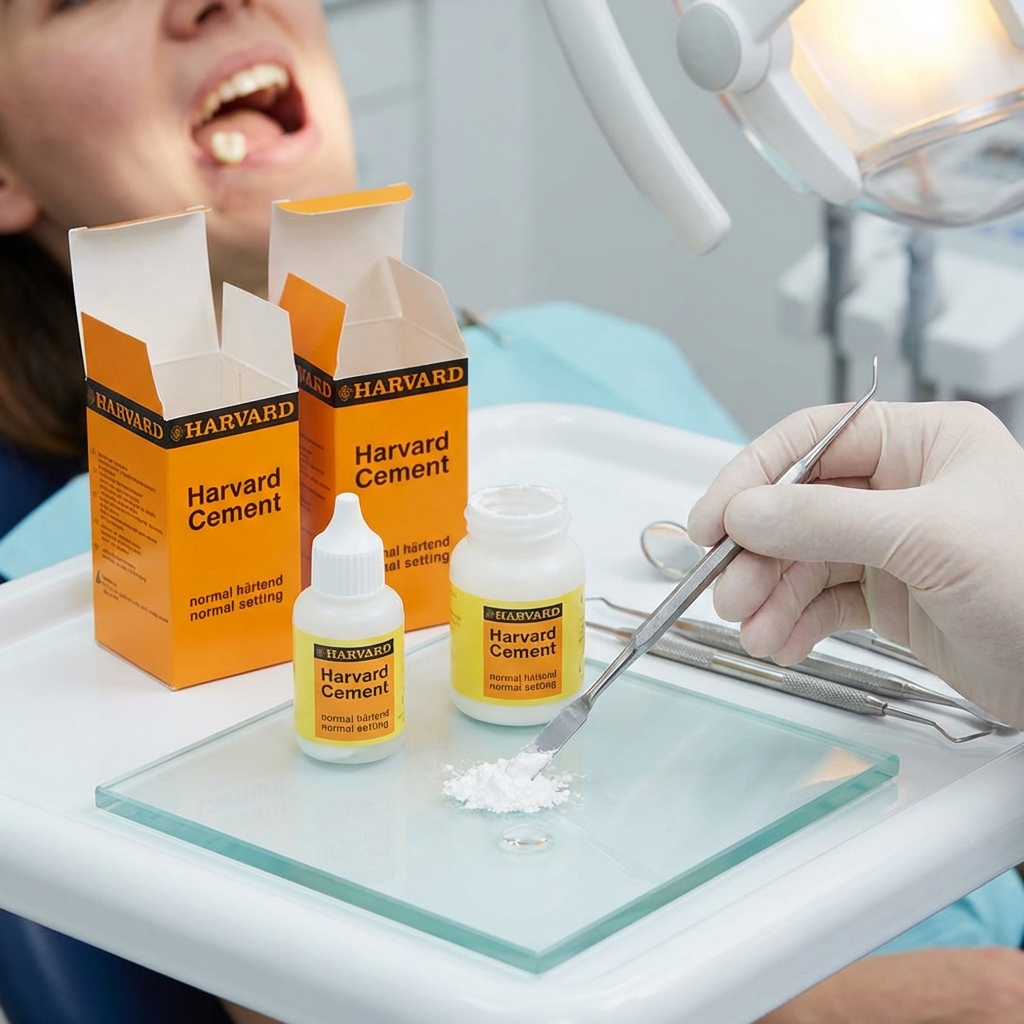

Harvard Zinc Phosphate Cement

Description

Zinc phosphate cement for permanent luting of crowns and bridges, inlays and onlays on natural core and for luting supraconstructions on implants

Indications:

• For permanent luting of crowns and bridges, inlays and onlays on natural core and for luting supraconstructions on implants.
• For crowns, bridges, inlays and onlays made of: zirconia aluminium oxide lithiumdisilicate silicate for conventional gold and non-precious metals

 Properties:

1. High compressive strength
2. Low film thickness
3. Good biocompatibility
4. Easy and safe application
5. Unmatched price performance ratio
6. No curing shrinkage

Key Features

• High compressive strength and low film thickness
• Good biocompatibility
• Easy and safe application
• Unmatched price / performance ratio for luting and lining materials
• Applicable for: Zirconoxid Ceramic, Silikat Ceramic, Aluminiumoxid Ceramic, Gold and non-metals
• Cement according to DIN EN ISO 9917-1
• Available in two setting times: normal and fast setting

Specifications

Composition:

• 1 g powder contains: 860 mg zinc oxide, 86 mg magnesium oxide;
• 1 g liquid contains: 560 mg o-phosphoric acid.

Dispensing Instructions:

• Fixation consistency: 1.5 g powder : 1.0 g liquid
• Cavity lining consistency: 2.1 g powder : 1.0 g liquid
• Dispensing and testing climate for testing in accordance with DIN EN ISO 9917:
• Mix quantities indicated at 23 ± 1°C and a relative humidity of 50 ± 10%.

Mixing Time: 90 seconds

Processing Time: from start of mixing (at 23 °C, 72 °F):

For fixation: 3 minutes

For cavity lining: 2 minutes Setting Time from end of mixing: 5:00 – 8:00 minutes

HARVARD CEMENT normal setting – Do not use after the expiration date. –

Storage temperature: 2–28 °C (36-82 °F).

Packaging

Harvard Zinc Phosphate Set Powder 35gm + Liquid 15ml 7002501K

• 1 x 35gm Powder
• 1 x 15ml Liquid

Harvard Zinc Phosphate Set Powder 100g + Liquid 40ml 7002201K

• 1 x 100gm Powder
• 1 x 40ml Liquid

Directions for Use

Mixing:

• In order to achieve a homogenous consistency, divide the measured quantity of powder into 4 portions (1/2 1/4 1/8 1/8).
• Beginning with the smallest quantity, stroke the powder into the measured liquid within 90 seconds.
• The filling consistency has been reached when on lifting the spatula, the peak drawn out forms a small hook and does not sink back into the paste.
• The fixation consistency has been reached when the peak formed on lifting the spatula slowly falls back into the paste.
• Discard remaining powder or impure liquid.
• Mixing Time: 90 seconds

Special Information:

• The mixed cement should never be applied directly onto dentine near to pulp or onto exposed pulp.
• Irritations of the pulp may occur following the cementing and in the case of the mixture being used for cavity lining.
• The cement must be applied to the dry tooth surface and must set without contact to moisture.
• Close containers immediately after removing material.
• The liquid contains phosphoric acid and is corrosive. In the event of accidental eye contact, rinse immediately with large quantities of water.
