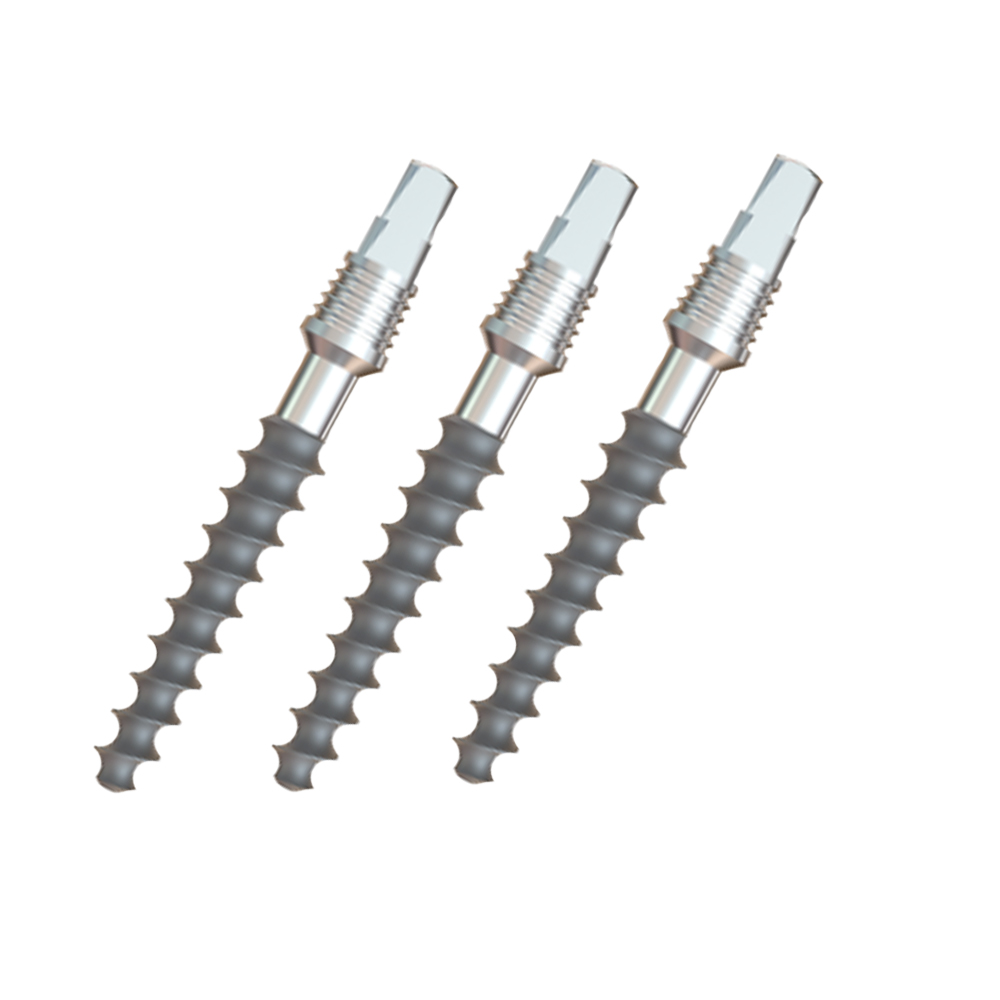

GS Implants Rough 3.0mm

Description

The GS implant rough system is a one-piece, specially designed implant that connects to the bone from its apical and has excellent primary stability due to support from its connection to the cortical bone (basal bone). GS implants rough can withstand greater force because of the integrated superstructure. The system is free from neck fractures, screw loosening, and screw breakages with its one-piece structure.

Advantage :-

• Rough GS implant can be used in cases where high osseointegration is desired. Implantation is carried out by compressing the bones on the side.
• Especially in D3 and D4 type bones, it provides high cellular adherence to the surface thanks to its rough structure.
• GS Implants Have Increased Osseointegration Performance Even Under the Most Critical Clinical Situations, Shortening the Treatment Process to Three Days. Both The Patients and Dentists Benefit Greatly from This Shortened Treatment Stage and Healing Time.

Key Features

• Trimming can be done for prosthetic ease
• Compatible for welding (syncrystallization)
• No place for bacterial colonization
• To be used in a healed edentulous jaw
• SLA surface: with calcium phosphate etching to create a porous surface
• Capable of compressing the crestal bone when cancellous bone is present
• Narrow shape: to bypass the mandibular nerve

Specifications

• Type: Basal one-piece implant
• Category: Implants
• Material: Biocompatible Ti-6Al-4V titanium alloy
• Corrosion resistance: Yes
• Osseointegration performance: Optimized for immediate loading
• Available Sizes:
• Length: 11mm,15mm
• Diameter: 3.0mm

Packaging

• 1 x GS Implants Rough

Directions for Use

• Patient Assessment
  Evaluate the bone quality using radiographic and clinical examination. The rough GS implant is ideal for D3 and D4 bone types where enhanced osseointegration is desired.

• Site Preparation
  Perform atraumatic extraction if needed. Prepare the osteotomy site by drilling according to the implant diameter. The implant is designed for placement through lateral bone compression, not just tapping.

• Implant Insertion
  Insert the implant into the prepared site using slow-speed torque insertion. The self-compressing design ensures tight engagement with surrounding bone, enhancing primary stability.

• Cortical Engagement
  Ensure that the apical and crestal ends of the implant engage the cortical plates to maximize initial stability. Avoid over-torquing during placement.

• Prosthetic Compatibility
  As it is a one-piece system, immediate temporary prosthesis can be delivered based on insertion torque and clinical judgement, enabling full treatment in as little as 72 hours.

• Post-Insertion Care
  Educate the patient on post-operative hygiene. The rough surface promotes cellular adherence, but careful cleaning is essential to prevent peri-implant complications.

• Follow-Up
  Monitor osseointegration clinically and radiographically. Due to the rough surface, the implant accelerates healing and offers excellent long-term fixation even in compromised bone structures.

Warranty & Service

• There is 5 Year replacement for the failure of the implant
