Geistlich Meta Safescraper

Description

Key Features

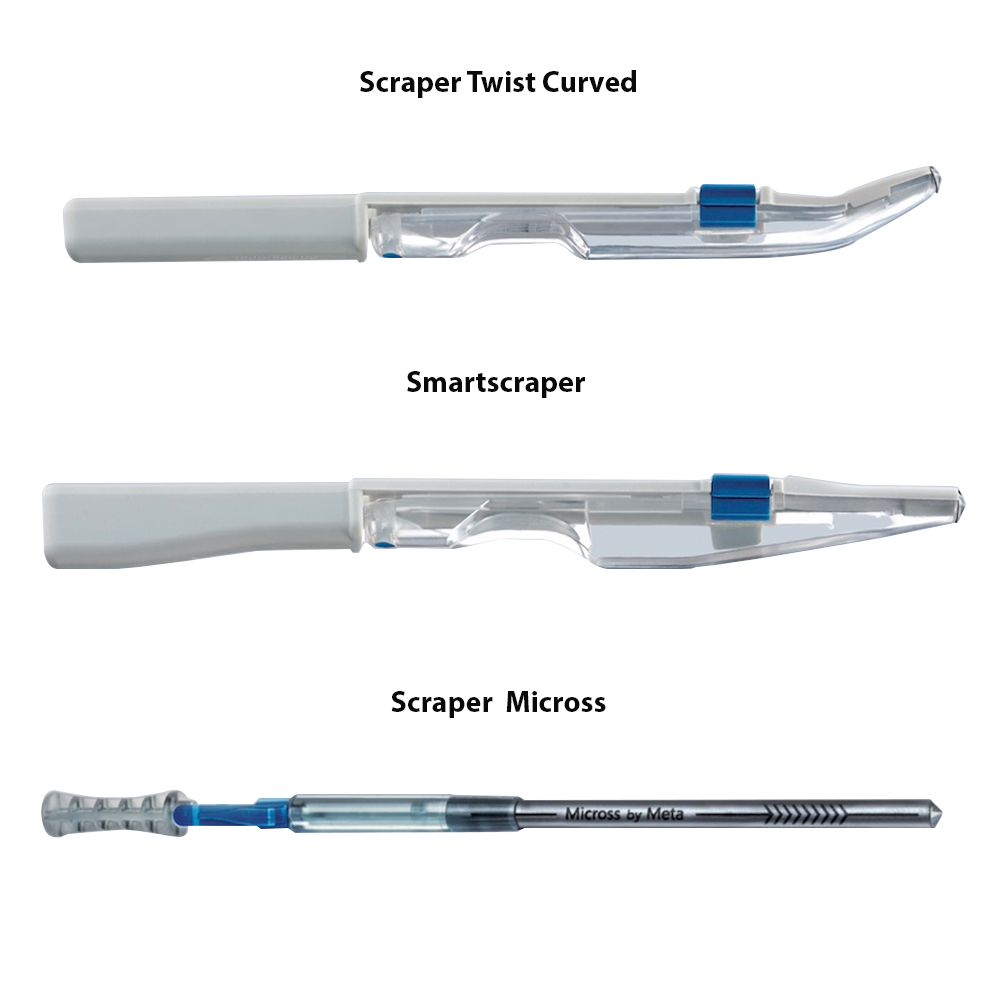

Safescraper Twist Curve

• Minimally Invasive: Designed for easy harvesting of autogenous cortical bone with minimal discomfort
• Versatile Use: Suitable for both small and large bone harvests from various surfaces (flat, concave, convex)
• Ergonomic Design: Provides excellent control during the harvesting procedure
• Cell Vitality Preservation: Collects bone shavings while maintaining maximum cell vitality for effective graft integration
• Immediate Use: Collected bone is mixed with blood, ready for placement in defects
• Transparent Collection Chamber: Aseptic conditions are maintained in a 2.5 cc chamber for temporary storage
• Single-Use and Sterile: Comes individually packaged to ensure sterility

Safescraper Twist Curve Volumizer

• Increased Volume Collection: Redesigned blade with double grooves allows for larger volumes of bone to be harvested in a single pass
• Efficiency: The Volumizer collects 20% more bone volume per scrape saving time for physicians
• Enhanced Cutting Performance: Efficiently collects cortical shavings with optimal characteristics for transplantation
• Quick Harvesting: Reduces procedure time by facilitating rapid collection of bone
• Cell Vitality Preservation: Maintains cell vitality during harvesting for successful grafting
• Ready-to-Use Bone: Harvested bone is immediately usable or mixable with Geistlich Bio-Oss®
• Disposable and Sterile: Single-use, ensuring safety and convenience during surgical procedures

Safescraper Micross:

• Exclusive Micro-Blade: Designed for easy and efficient bone collection
• Minimally Invasive Technique: Facilitates a tunneling surgical approach, reducing patient discomfort
• Versatile Application: Effective on various bone surfaces, including flat, concave, and convex areas
• Well-Preserved Bone Cells: Collects bone shavings containing vital cells such as osteocytes, osteoblasts, osteoclasts, and osteoprogenitor cells
• Rapid Harvesting: Accelerates the bone collection process, enhancing surgical efficiency
• User-Friendly Design: Provides excellent control during harvesting for precise movements
• Direct Collection with Blood: Bone tissue is collected in a chamber mixed with blood, ready for immediate use or grafting
• Compact Size: The collection chamber has a capacity of 0.25 cc, allowing for efficient storage of harvested material

Specifications

Geistlich Meta Safescraper Twist

• Blade: 160˚Cutting blade
• Transparent collection chamber capacity: 2.5cc
• Curled shaving morphology: mean length 1.3mm, ranging between 150 and 250μm

Geistlich Meta Safescraper Twist Curve Volumizer

• Blade: 160˚Cutting blade
• Transparent collection chamber capacity: 2.5cc

Safecraper micross:

• Collection chamber capacity: 0.25cc
• External diameter: 5mm

Packaging

• 1 x Meta safescraper twist

Directions for Use

• Open the Package: Open the package from the side marked with the symbol “S.” Lay the instrument on a sterile field, ensuring maximum sterile conditions
• Grip the Device: Hold the device with the transparent tank facing the bone to ensure accurate movements
• Bone Collection: Push the end of the device towards the bone surface while simultaneously pulling it backward.You can also collect bone using slanting and sideways movements.Adjust the angle and pressure to achieve the desired consistency of bone lamellae or plates
• Capacity: The Safescraper Twist Curve can hold up to 2.5 cc of bone, while the Volumizer can hold up to 3 cc.
• Retrieving Collected Bone: Keep the transparent tank facing downward. Press the lock button sideways and slide the tank clockwise to release collected bone.
• Continuing Collection: To continue collecting or before disposal, return the tank to its original position and press the button laterally to engage the lock
• Transfer Bone: Use forceps or a spoon-type elevator to transfer collected bone to the surgical site
• Post-Use: Dispose of the device according to medical waste regulations as it is single-use only

Additional Information

Country of Origin: Switzerland

Manufacturer:
Geistlich Pharma AG
Bahnhofstrasse 40, CH-6110 Wolhusen, Switzerland

Packer:
Geistlich Pharma AG
Bahnhofstrasse 40, CH-6110 Wolhusen, Switzerland

Imported By:
Geistlich Pharma India Pvt. Ltd.
DMS-161 & 162, 1st Floor, DLF Towers, 15 Shivaji Marg, Najafgarh Road, New Delhi – 110015, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product.
