Frank Dental Flame Ogival FG Diamond Burs – Pack Of 10

Description

Frank Dental Flame Ogival FG Diamond Burs – Pack of 10 is specially designed for crown preparation procedures requiring precision and finesse. Its flame ogival shape allows access to interproximal and subgingival areas, creating smooth chamfer and shoulder margins with minimal trauma to adjacent tissues. The fine diamond grit ensures controlled, vibration-free cutting, reducing heat generation and improving patient comfort. This bur offers excellent visibility and control, making it ideal for achieving clean, well-defined margins on tooth preparations. Crafted from high-quality materials, it maintains sharpness over multiple uses and withstands repeated sterilizations.

Parts of Bur:-

• Metal base: Stainless steel (including nickel and chromium)
• Working part: Fine diamond crystals attached to metal base(including nickel and chromium)
• Shank: Stainless steel (including nickel and chromium)

Key Features

• Long-life diamond burs
• Quality control tested
• High precision with efficient cutting
• Friction grip (FG) standard shank length
• Autoclavable

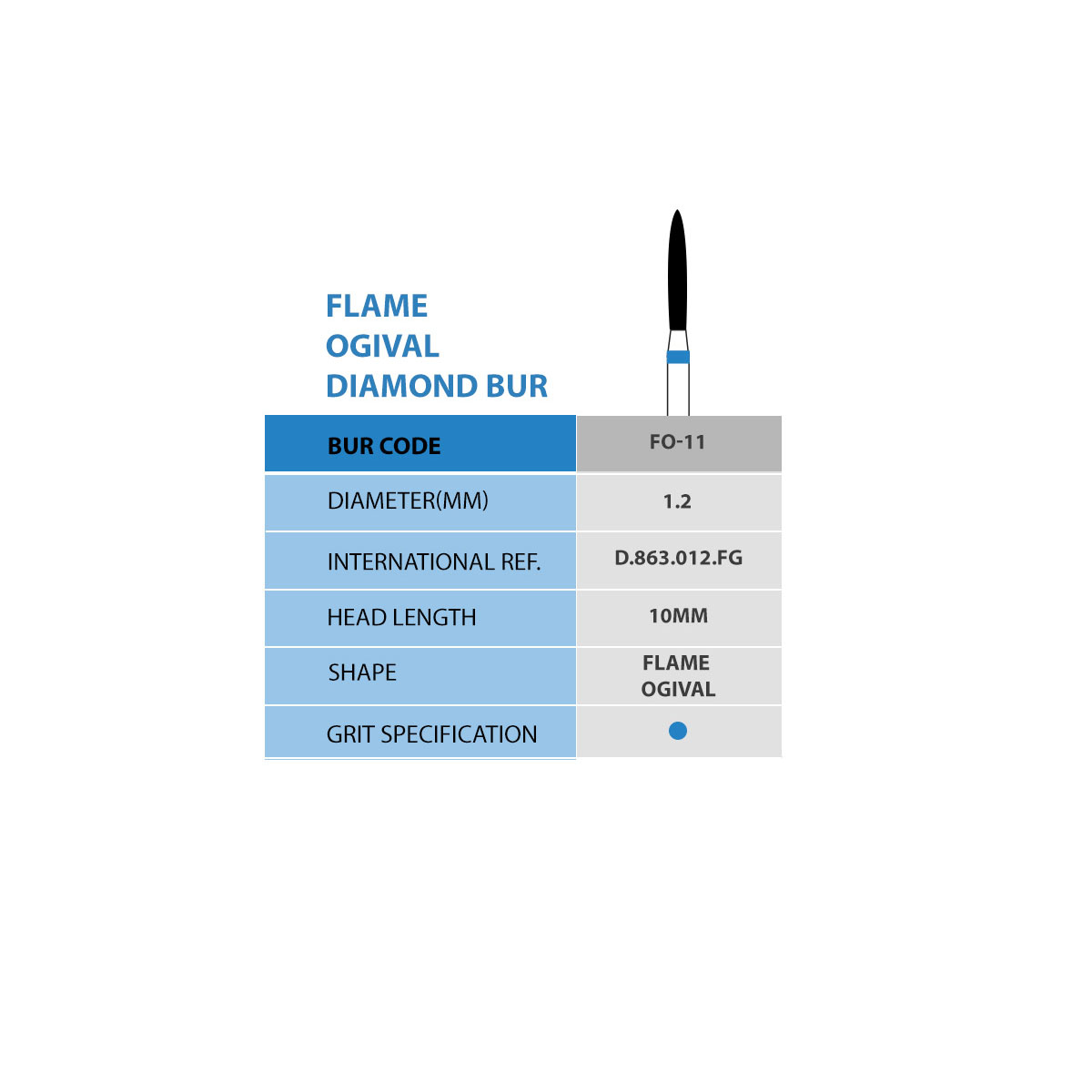

Specifications

• Type: Flame Ogival Diamond Bur
• Category: Rotary Instruments for Crown Preparation
• Grit: Fine diamond-coated
• Shank: Friction Grip (FG)
• Sterilizable: Autoclavable
• Material:Stainless steel
• Compatibility:Airotor

Packaging

• Pack Of 10

Directions for Use

• Selection — Determine the clinical requirement and choose the appropriate flame ogival bur size from the pack based on tooth anatomy and desired margin type.
• Handpiece Setup — Clean, lubricate, and disinfect the high-speed handpiece thoroughly, following standard protocols.
• Mounting — Insert the bur securely into the handpiece chuck, ensuring it is fully seated and aligned to minimize runout and vibration.
• Operation — Activate the handpiece and gently apply the bur to the tooth surface, using its flame shape to create smooth, precise margins while accessing tight interproximal and subgingival regions. Use light pressure and let the diamond coating perform the cutting.
• Cooling — Ensure a constant, adequate water spray during operation to control heat generation and protect both tooth and soft tissue.
• Finishing & Removal — Once the crown preparation is completed, stop the handpiece and carefully remove the bur from the chuck.
• Post-use Care — Rinse the bur to remove debris, then sterilize it in an autoclave according to standard protocols before storage or reuse.

Additional Information

Country of Origin: Germany

Manufacturer:
FRANK Dental GmbH
Tölzer Str. 4, 83703 Gmund am Tegernsee, Germany

Packer:
FRANK Dental GmbH
Tölzer Str. 4, 83703 Gmund am Tegernsee, Germany

Imported By:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farrukhnagar, Gurugram, Haryana – 122506, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product.
