Endoking Endomotor White + Endoking Apex Locator

Description

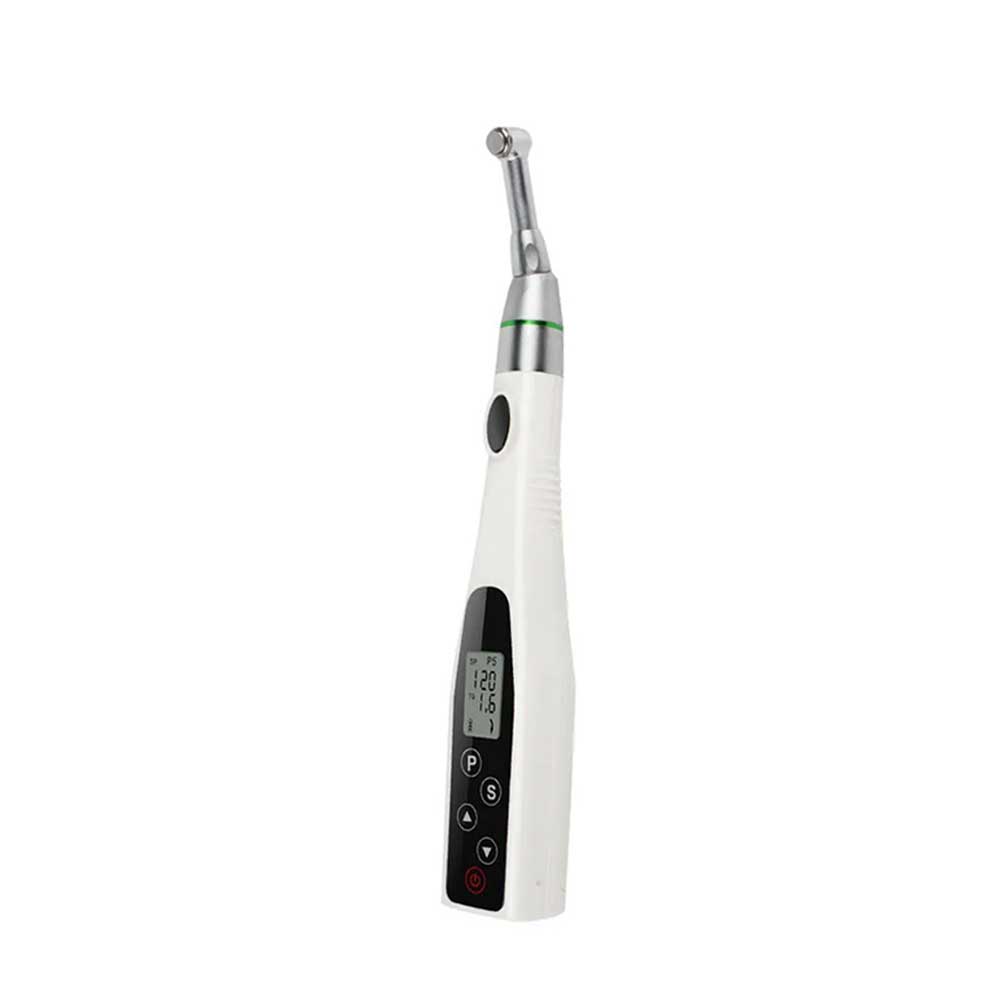

EndoKing Cordless LED Endomotor

• The product is based on the ergonomic design with a lightweight endo motor
• There are 6 kinds of procedures (Memory Set) for selection. It can input the optimum data in advance, and also can modify it accordingly to the working conditions in use.
• Dental Contra-angle handpiece and the lamp holder can withstand 135C high temperature and high-pressure sterilization
• In-built high capacity lithium battery, so it can reduce battery change times and reduce costs of the machine.

Endoking Apex Locator

Endoking Apex Locator is a especially designed apex locator used in endodontics for determining the working length & finding the accurate apex.It also works on multi frequency network technology which provides accurate results.The accessories that are in direct contact with patient’s tissues are autoclavable ,hence,preventing cross contamination.

It can be used in following patients :

• Patients with reduced mouth opening
• Less cooperative paediatric patients
• Geriatric patients

Please Note: Accuracy in readings for apex locators is claimed to be 97.7% accurate. Readings may vary from the conventional method of working length determination (radiographic method) & may fluctuate in cases where the precautions (recommended in user manual) are not followed

Key Features

Endoking Apex Locator

• Light Weight, Portable apex locator (5th generation)
• 97.7% accuracy for detemining the apex
• LCD screen with clear display
• Easy to use apex locator
• Equipped with clear bright screen clear image and different color indicate the trajectory of the file clearly.
• Based on advanced multiple frequency network impedance measurement technology and automatic calibrating ensures the measurements are accurate.
• Autoclavable file clip, file hook, file probe. Prevents cross contamination effectively.
• When doing the measurement, the beep alert can indicate the position of the file in the root-canal.

EndoKing Cordless Endomotor LED

• Ergonomic Design: It has ergonomic design which makes it fit for the dentist’s use.
• Slim body & Lightweight: The slim, lightweight body and extremely small head allow optimal visibility during procedures.
• Hygiene and maintenance: The contra-angle head is sterilizable and thermo disinfectable. Handpiece drive and charging station can be disinfected through wiping down, and can be cleaned with a soft cloth with ethanol.
• Simple interface design
• High brightness LED to provide better illumination during RCT
• Stable and prolonged usage.
• Reliability with long-life Li-ion battery.
• Wide torque & speed range make it adapt to various file systems such as FKG, XP-endo, and Shaper in the market.
• The autoreverse and autoforward modes with automatic safety stop minimize the risk of file breakage.

Specifications

EndoKing Cordless LED Endomotor

TECHNICAL SPECIFICATIONS:

• Speed Range: 120-500 rpm
• Gear Ratio: 16:1
• Torque Range: 0.6-4.0N.cm

HOST MACHINE:

• Battery Voltage: 3.7vdc
• Battery Capacity: 800mAh
• Net Weight: About 210g

POWER ADAPTER:

• Rated Input Voltage: AC100-240V60/60Hz
• Output Voltage: 5vdc
• Input Voltage: 1A

Endoking Apex Locator (Endo-Pex iii)

• Power: 3.7V/2000mAh
• Adapter: ~100V-240V 50Hz/60Hz
• Power consumption: ≤0.5W
• Screen: 4.5“LCD
• Main unit weight: 446g
• Dimensions: 131mm×75mm×105mm

Packaging

EndoKing Cordless Endomotor LED

• 1 x Endomotor Unit
• 1 x Contra angle head
• 1 x Charging Unit
• 1 x Power Adapter
• 1 x Led Light
• 1 x Instructional Manual

Endoking Apex Locator (Endo-Pex iii)

• 1 x Main Unit
• 2 x File Clip
• 4 x Lip Hook
• 1 x Charger
• 1 x Measuring Wire
• 2 x Touch probe
• 1 x Tester
• 1 x Instruction Manual

Directions for Use

Endoking Endomotor :

Power Button : Holding down the Power key for more than one second turns on the power and the LCD panel lights.
Holding down the Power key for more than one second while the power is on turns off the power and the LCD display turns off.

Motor Switch Button : By pressing motor ON/OFF key, the files in contra-angle will start to rotate and pressing the key again will stop rotation of files.

Item Select Button S : Pressing the Item Select key S, you can switch speed, torque and modes. The speed and torque settings can be changed during the running of the machine.

Program Shift Button P : Clicking the Program Shift Key P, you can switch 7 kinds of working procedures.

Upward & Downward Button : Press this key to increase or decrease the parameters of each item. When the current item is flashing, press “+/-” key to change the parameter of the current item. While the file in contra-angle is rotating, pressing “+/-” key can also change speed (SP) up and down.

Reset Setting : While on standby(positive/negative movement), install Contra-angle Handpiece and do not give extra load to it, then long-press Item Select key S when “CRL “ appears on the screen, press the motor switch again to prompt”bee”. At this time, the instrument will start to reset and then enter the lock screen interfaces.

Endoking Apex Locator (Endo-Pex iii) :

• When the file reaches the front region of the apical foramen, the white bars are displayed.
• When the file has gone to the position near by the apical foramen, the green bars are displayed.
• When the file has exceeded the apical foramen, the red bars are displayed. A continuous beep sound will be generated at the same time.

Additional Information

• Country of Origin: Made in PRC

Warranty & Service

EndoKing Cordless Endomotor LED

• Manufacturer/Importer warranty of 6 months as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Endoking Apex Locator

• Manufacturer warranty of 2 years is applicable to this product.
• Service and warranty are handled at manufacturer’s discretion.
• Dentalkart will be liable to replace any faulty or unsatisfactory products.
• Dentalkart will provide guaranteed assistance to the customer in registering a request to get the product replaced or serviced.
• The buyer acknowledges that products once sold will be exchanged or taken back only if seal of the package or product is intact or unaltered or is not tampered with
