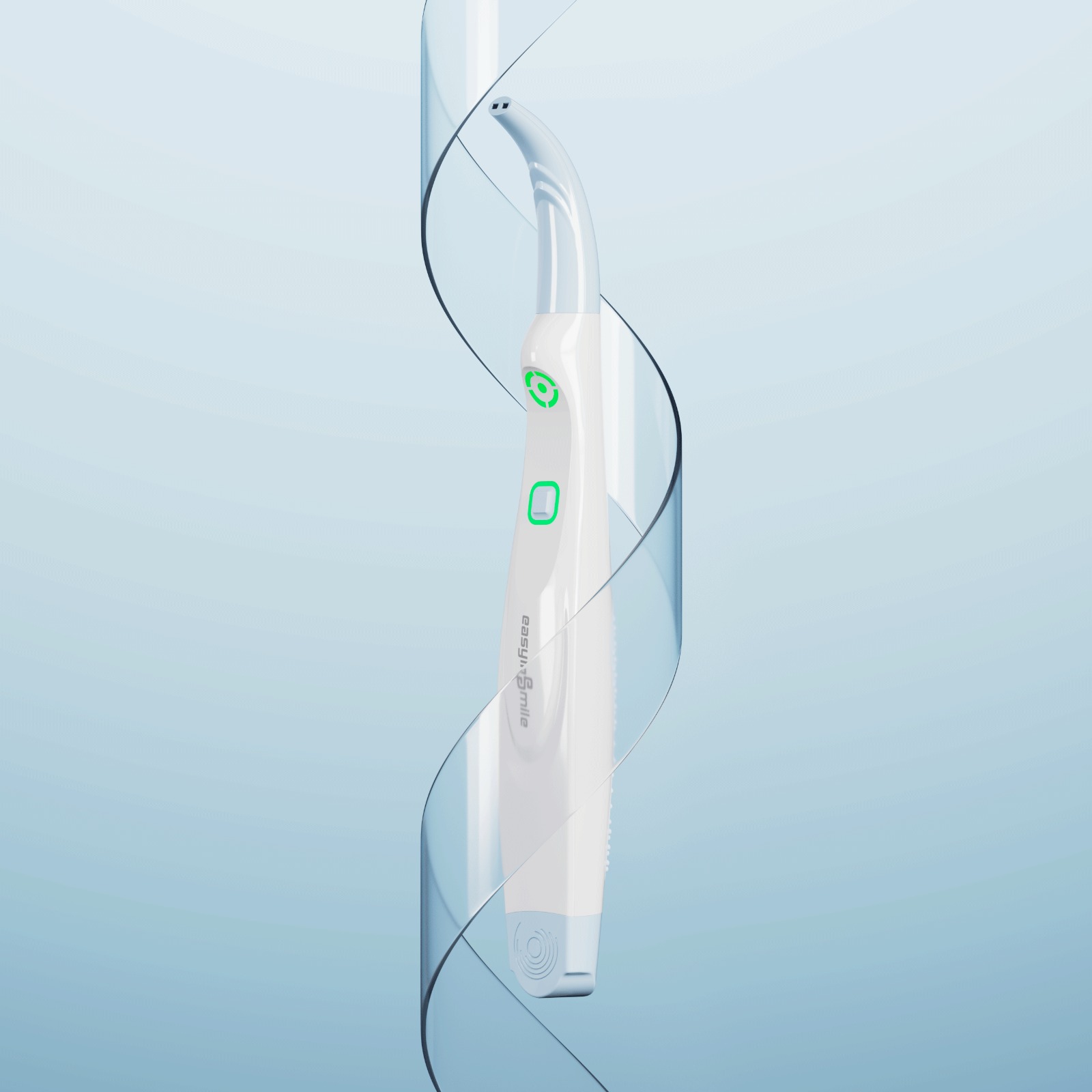

EasyinSmile Smart Implant Detector

Description

The EasyinSmile Smart Implant Detector is a three-dimensional implant locator with an advanced electronic device that can accurately locate dental implants covered by gum tissue.

EasyinSmile Smart Implant Locator utilizes the weak electromagnetic characteristics of the dental implant itself, and uses detection and positioning technology in the clinical treatment of implans.

It is 3D Implant Locator Health System Handpiece With Removable 270° Rotating Sensor Head. Minimizes pain and reduces healing and chair time to maximize the benefit for both the patient and the dentist.

This is an essential device to be added to your toolbox when implant location identification is necessary.

• Detect the mandibular implants at an angle of 0°.
• Detect implants with crowns through the outer gum, rotate 90° to the right.
• Detect implants with crowns through the inner gum, rotate 90° to the left.
• Detect the maxillary implants at an angle of 180°.

1. Easily find implants buried in the second stage of planting.
2. Reduced the time required to locate the embedded implant.
3. Minimize and shorten the recovery period.
4. Used for second-stage planting when the healing abutment is not used.
5. Removable sensor head, easy to sterilize.
6. Easy to replace battery.

Key Features

• Simple: Simplify procedures in complex situations.
• Accurate: The implant can be easily detected regardless of its position or angle.
• Reliable: More effective than X-ray.
• Sterilizable: The detachable sensor can be easily sterilized.
• Effective: Suitable for various titanium implant systems.
• Safety: Less surgical trauma and postoperative complications, faster healing time.
• Ergonomics: Designed for better grip.
• User Friendly

• Cost Effective

• Innovative

• High Precision


Specifications

• Size : 214mm x 25mm x 51mm
• Weight : 60g+10%(including battery)
• Rotation angle : 0-270°
• Battery : AA grade LR6, 1.5v mercury free alkaline dry battery
• Autoclavable : Detachable head is autoclavable
• Environment temperature : 16°C – 35°C
• Relative Humidity : < 80% RH

Packaging

• 1 x Main Machine
• 1 x Operating Manual
• 3 x Detection Sensors
• 30 x Protective Barriers

Directions for Use

• Open the protective cover at the end of Implant Locator Device.
• Install the AA battery cell inside the implant locator and align the slot. Before replacing the battery, the device must be turned off.
• When inserting battery, ensure that the polarity is correct ( the positive electrode of the battery must be toward the inside of the battery box )
• Close the protective cover of the implant locator.
• Put on the protective barrier sleeve to prevent disinfection.
• Plug in the detection sensor.
• Sensor Head can be rotated to multiple angles according to preference.
• Long press the power button to switch on the device.
• Move device around the selected implant site, when the implant detector moves to the hidden estimated implant position, the green light will flash.
• When the detection sensor of the implant detector approaches the implants, the four segment LED lights will turn steady green.
• Continue to move the detection sensor in same direction, do not stop until the four segment LED lights will turn orange, indicating that the detection sensor has passed the position of the implant.
• At this time, move the detector in the opposition direction. When the indicator light turns green again, it means that the detector is close to the implant site again.
• When the middle indicator light up in green, it means that the centre position of the implant has been detected.
• Mark the position with a probe through the sensor head hole.
• Cut the gum tissue by gum cutter to expose the implant.
