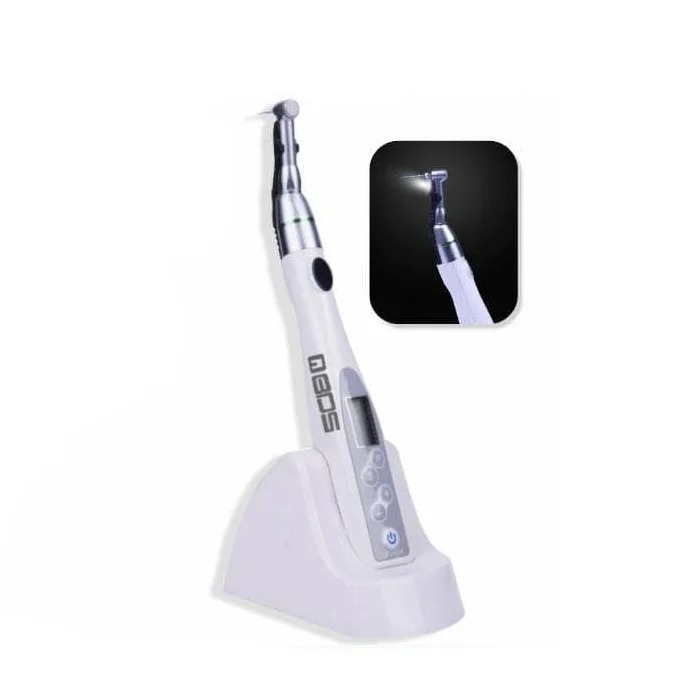

Dontics EM100 Cordless Endomotor With LED

Description

The Dontics EM100 Cordless Endomotor with LED is an ergonomic, lightweight device designed for efficient root canal procedures. It features a 16:1 electric contra angle for precise torque control and a rechargeable battery for cordless operation. The motor offers adjustable speed settings and includes an auto-reverse function to prevent file separation during canal preparation. The integrated LED light enhances visibility in the root canal system, while the compact design ensures comfort during extended use. Suitable for consultations and routine endodontic treatments, it supports sterilization at up to 135°C. The EM100 prioritizes safety with soft start/stop mechanisms and is ideal for clinicians seeking reliability in compact, user-friendly equipment.

Key Features

• Ergonomic & Lightweight Design: Ensures comfort during prolonged use, ideal for consultations
• 16:1 Contra Angle: Precision gear ratio for controlled torque during root canal preparation
• 9 Specialized Programs: Adapts to diverse clinical scenarios with customized settings
• Auto-Reverse/Auto-Stop: Prevents file separation by reversing or stopping during excessive resistance
• Soft Start/Stop: Reduces file stress and minimizes breakage risks
• Autoclavable Components: Contra angle and critical parts withstand sterilization at 135°C
• Long Battery Life: Built-in rechargeable battery supports up to 50 canals per charge
• Low Battery Alarm: Alerts users for timely recharging
• LED Illumination: Enhances visibility in the root canal system
• Reciprocation Mode: Supports bidirectional file movement for efficient debris removal

Specifications

• Lithium Battery In Motor Handpiece: 3.7 V / 2000 mAH
• Speed Range: 140-600 rpm
• Input: 100V-240V 50Hz/60Hz 400mA m
• Gear Ratio: 16:1 electric contra angle
• Torque Range: 0.6-4.0 Ncm
• Battery Life: Battery which lasts upto 50 canal

Packaging

• 1 x Endomotor Unit
• 1 x Charging Unit
• 1 x Power Adapter
• 2 x LED

Directions for Use

Charge the Battery

• Ensure the device is fully charged via its wireless charging dock
• Check the low-battery alarm to avoid interruptions during procedures

Assemble Components

• Attach the 16:1 contra-angle handpiece (other ratios may cause errors)
• Connect the file clip and lip hook if using apex-locator-like functions

Sterilize

• Autoclave the contra-angle and files at 135°C before use

Operation Steps

Power On

• Press and hold the power button for 1+ second to activate
• The LCD displays battery level, speed, torque, and selected program

Select Program

• Use the Program Shift Key (P) to cycle through 9 preset modes, including:
• Continuous rotation (360° forward)
• Reciprocation (e.g., 150° forward + 30° reverse)
• Auto-reverse/stop modes triggered by torque resistance
• Adjust speed (100–600 RPM inferred) and torque (unspecified range) using “+/-” keys

Insert File

• Attach a sterilized file to the contra-angle
• Activate auto-start (if enabled) by inserting the file into the canal
• Alternatively, press the motor button to start manually

Canal Preparation

• Monitor real-time torque on the LCD to avoid file separation
• For ledges or resistance
• Use reciprocation programs (e.g., 150° forward + 30° reverse) to bypass obstructions
• Let the auto-reverse function retract the file if torque exceeds limits

Finish & Shutdown

• Remove the file and press the motor button to stop rotation
• Power off by holding the power button

Critical Features

• Auto-Reverse/Auto-Stop: Triggers during excessive torque to prevent file breakage
• Soft Start/Stop: Reduces stress on files during activation
• Battery Life: Supports ~50 canals per charge

Additional Information

• Country of origin: PRC
• Manufacturer: Dontics
