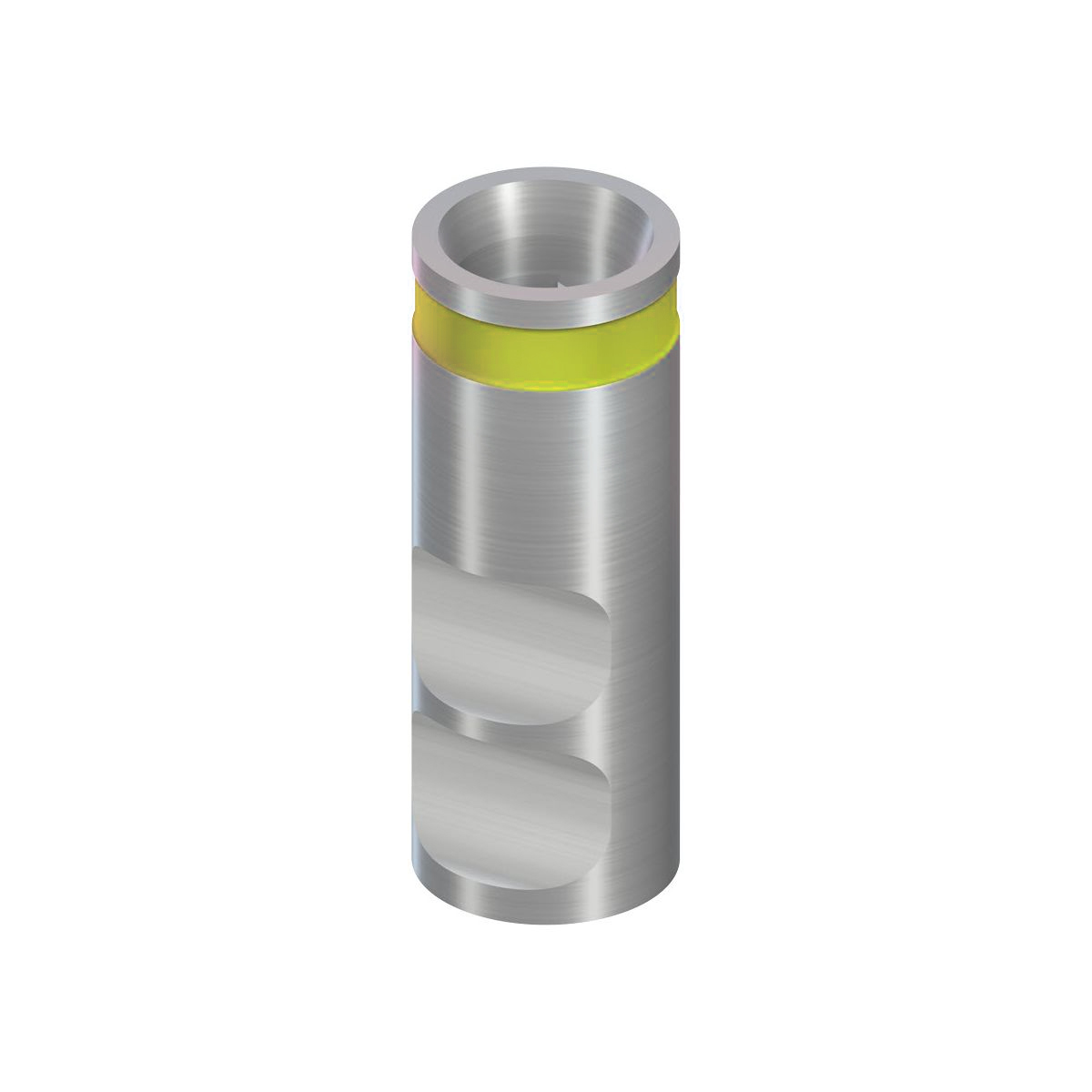

Dentaltech Lab Analog ∅3.5mm – Straumann NC Implant Compatible (Pack of 10)

Description

The Dentaltech Lab Analog Ø3.5mm for Straumann NC is a precision laboratory replica engineered to recreate the position and orientation of a Straumann Bone Level implant with the Narrow CrossFit (NC) connection on the master cast. Specifically dimensioned for narrow-platform 3.3 mm Straumann implants used in lower anteriors and limited-ridge sites, the analog screws onto the matching Straumann NC impression coping and is embedded in dental stone when the master model is poured. This faithfully reproduces the exact NC implant interface, giving the technician an accurate reference for designing abutments, crowns, and screw-retained restorations that fit precisely when delivered intraorally. Precision-machined from grade 5 medical titanium alloy with the precise CrossFit connection geometry, it ensures dependable transfer accuracy. Retention grooves on the body provide secure anchoring once stone sets. Supplied as a pack of 10 for routine Straumann NC laboratory workflows.

Key Features

• Lab analog embedded in dental stone to replicate the Straumann NC implant position on the master cast
• Engineered for Straumann Bone Level implants with the Narrow CrossFit (NC) connection
• Ø3.5mm dimension precisely matches the Straumann NC narrow-platform geometry
• Precision-machined from grade 5 titanium alloy for strength and dimensional stability
• Accurate NC CrossFit connection ensures reliable engagement with Straumann NC components
• Retention grooves provide secure stable anchorage in stone or model material
• Supplied as a pack of 10 for routine high-volume Straumann NC case processing

Specifications

• Product Type: Implant Lab Analog
• Brand: Dentaltech
• Compatibility: Straumann Bone Level NC
• Connection: Narrow CrossFit (NC)
• Diameter: 3.5 mm
• Material: Grade 5 titanium alloy
• Use: Embedded in dental stone model for prosthetic fabrication
• Use Environment: Dental laboratory
• Pack Size: 10 analogs

Packaging

• Pack of 10

Directions for Use

Preparation

• Confirm the case is restored on a Straumann Bone Level implant with Narrow CrossFit connection
• Inspect each lab analog for visible damage or machining defects before use
• Verify the Straumann NC impression coping is securely engaged in the patient’s impression

Analog Attachment

• Receive the completed implant-level impression from the clinic
• Engage the lab analog onto the impression coping ensuring complete NC CrossFit engagement
• Hand-tighten the analog screw to secure it firmly to the impression coping
• Verify the analog is fully seated and stable before pouring the model

Model Pouring

• Pour the impression with dental stone, die stone, or appropriate model material per the laboratory protocol
• Use vibration while pouring to eliminate air bubbles around the analog body and retention grooves
• Allow the stone to set fully before separating the impression from the cast
• Carefully remove the impression while keeping the analog embedded in the stone
• Verify the analog is firmly anchored in the cast with no rotational play

Prosthetic Fabrication

• Use the master cast with embedded analog for Straumann NC compatible abutment selection
• Fabricate the planned crown, small bridge, or screw-retained prosthesis on the cast
• Try-in the finished prosthesis on the cast before delivering to the clinic

Storage

• Store unused analogs in their original packaging in a clean dry environment
• Keep the master cast with embedded analog protected for future remake or adjustment work

Additional Information

Country of Origin: India

Manufacturer:
Kamal Encon Industries Limited
Plot No. 917, IMT Faridabad, Sector 68, Faridabad , 121001, India
Phone: +91 72899 99456

Packer:
Kamal Encon Industries Limited
Plot No. 917, IMT Faridabad, Sector 68, Faridabad,121001, India
Phone: +91 72899 99456

Marketed By:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farrukhnagar, Gurugram, Haryana , 122506, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product.
