Dentaltech DIO Compatible Digital Analog (DIO-Hybrid)

Description

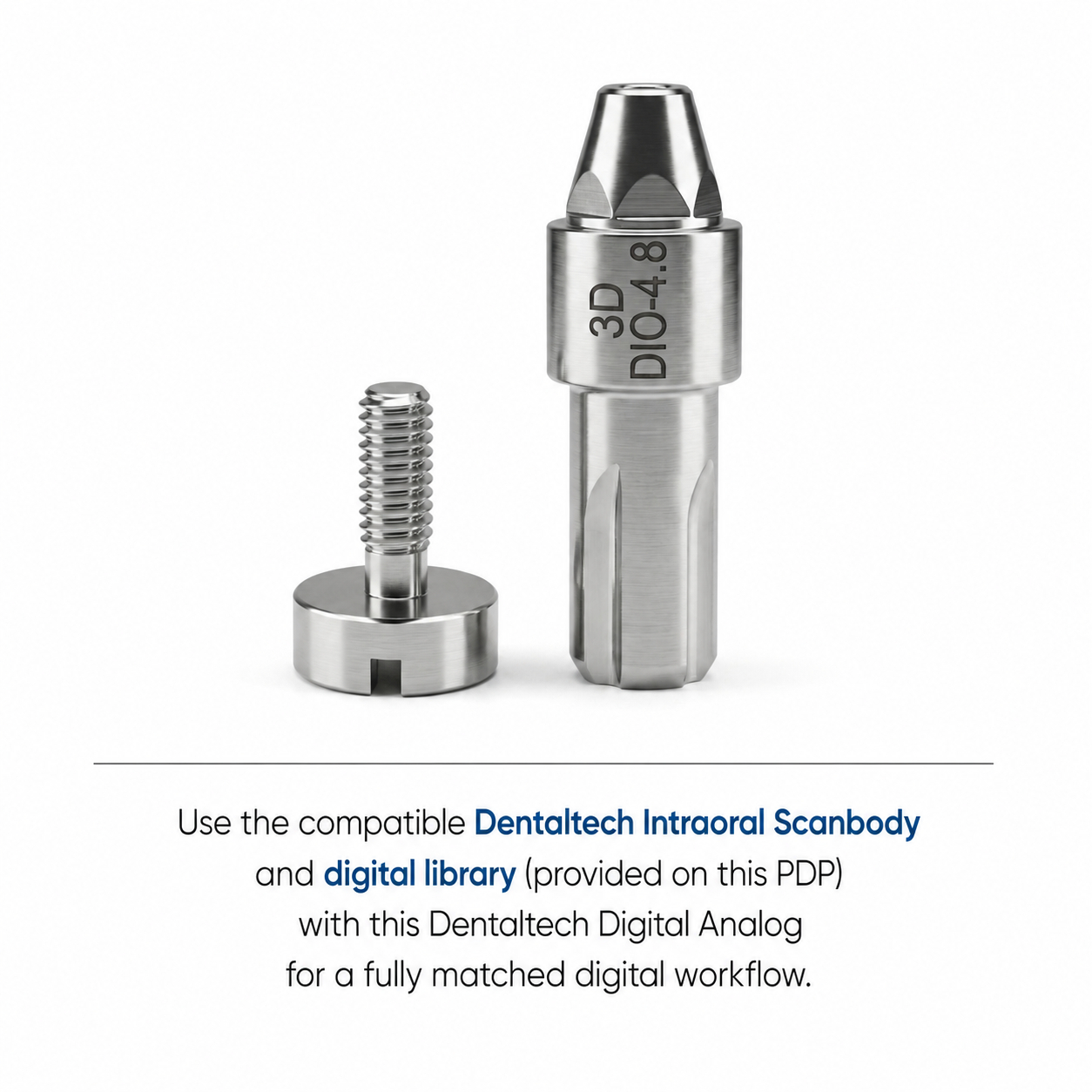

Dentaltech Dio Compatible Digital Analog (DIO-Hybrid) is a precision engineered laboratory replica designed to accurately reproduce the position, angulation, and connection geometry of seated DIO implants on working models. Manufactured from high grade Titanium, it delivers reliable dimensional stability, wear resistance, and a stable press fit within printed model sockets. The analog is fully compatible with Dio implant platforms and supports major CAD libraries. It is supplied with a dedicated retaining screw for fixation. This analog ensures accurate prosthetic fit for crowns and bridges produced through digital design and printing workflows.

Key Features

• Manufactured from Titanium for strength and long term dimensional accuracy
• Precision geometry accurately replicates DIO implant connection and platform
• Retention grooves ensure a stable and secure press fit within printed model sockets
• Supplied with a dedicated retaining screw for fixation
• Supports crown and bridge workflows

Specifications

• Material: Titanium
• Compatibility: DIO implant system
• Analog Type: Digital analog
• Model Application: 3D Model
• Screw Included: Yes one screw
• Reusability: Multiple use
• Analog Height: 1.4cm
• Screw Height: 7mm

Packaging

• 1 x Digital Analog

Directions for Use

Preparation

• Inspect the digital analog and retaining screw for any damage or contamination before use
• Verify compatibility with the specific DIO implant platform used in the case
• Ensure the digital impression file is imported into the CAD software with correct library selection

Model Setup

• Design the working model in CAD software using the matching Dio compatible analog library
• Export the model file and send it for 3D printing
• Allow the printed model to cure and stabilize before inserting the analog

Placement

• Align the digital analog with the designated socket in the printed model
• Press the analog firmly and evenly into the socket until it is fully seated
• Confirm stable retention by checking there is no rotation or vertical movement
• Attach the abutment or scan body for further design work

Post Use Care

• Remove the analog from the model carefully once restoration work is completed
• Clean the analog thoroughly with a soft brush to remove any debris or resin residue
• Inspect the connection geometry and threads before reuse in another case
• Store in a clean dry container and discard if any wear or deformation is observed

Additional Information

Country of Origin: India

Manufacturer:
Kamal Encon Industries Limited
Plot No. 917, IMT Faridabad, Sector 68, Faridabad , 121001, India
Phone: +91 72899 99456

Packer:
Kamal Encon Industries Limited
Plot No. 917, IMT Faridabad, Sector 68, Faridabad,121001, India
Phone: +91 72899 99456

Marketed By:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farrukhnagar, Gurugram, Haryana , 122506, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product.
