Arum 5X-500L CAD/CAM Milling Machine

Description

Arum 5X-500L CAD/CAM Milling Machine

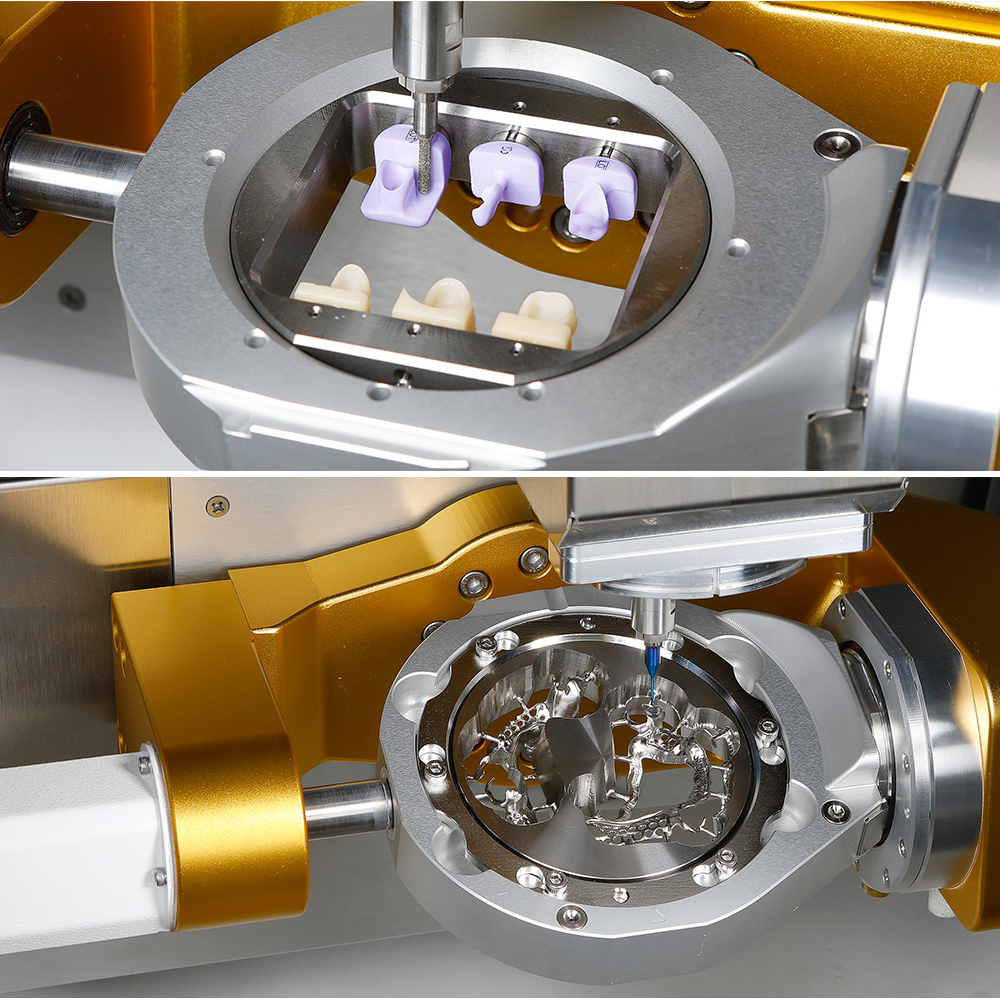

Arum Dental Mill 5X-500L is a true dental production system designed for 24-hour operation supported by the 12-station auto-jig changer. The 5X-500L is the most versatile machine in the Arum range. It caters to milling CoCr and Titanium components such as screw-retained bridges, dental bars, and custom abutments. The Arum 5X-500L is also suitable for all your zirconia crown and bridge work, truly a very versatile machine. It has a 20-station automatic tool changer to allow for a full set of tools for both metal and zirconia.With the wireless auto-calibration, the 5X-500L can calibrate individual abutments for optimum accuracy.Axis motion is a Servo Motor with a built-in Absolute Encoder to ensure perfect zero-point precision.A nice feature is the C-clamping of the blocks which has one side open to allow milling on the side. This feature is very useful when machining full dentures and you can easily mill the undercuts.The Arum 5X-500L features a high precision 2.2KW spindle (2,000 – 60,000 RPM) to support the most difficult cutting conditions. It is capable of milling wet or dry. The wet option uses a water tank and the dry option use a dust vacuum system.

Indications

• Inlay and Onlay, Crown, Coping, Crown Bridge, Coping Bridge, Dental Bar, Screw-Retained Bridge, Customized Abutment, Hybrid Abutment, Model, Splint, Full Dentures.

Cuttable Materials:

• Titanium Disk, Co-Cr Disk, Ni-Cr Disk, Pre-Milled Blank (Titanium), Zirconia, Lithium Disilicate (E-max®, Etc), Nanocomposite (Vericom Mazic® duro, Lava Ultimate® Etc), PMMA, PEEK, Wax, Etc.

Key Features

Realization of Smart Factory with stable Precision Automatic Replacement System

• With the automatic replacement of 12 jigs, you can realize a 24-hour Smart Factory.
  With the Zero Point system, you can perform accurate and stable machining and manage production time efficiently.

Excellent Precision and Durability

• With the ZERO Point system, you can achieve excellent origin point precision despite repeated jig replacement, which allows you to machine even complex shapes stably. Servo Motor with built-in Absolute Encoder and Auxiliary Support compensates for even fine vibrations.

Best-in-class Spindle

• With the powerful spindle from Sycotec in Germany, it boasts excellent performance in machining all dental CAD/CAM materials including metal (Co-Cr, Titanium, Ni-Cr).

Machining with Maximum Efficiency

• You can machine a variety of materials with a single setting. (storage space for 12 jigs, 12 disks, 72 Pre-milled blanks, 72 Cad blocks), allowing you to be able to manage machining time and cost-efficiently.

Labial Side Machining

• With Open C Type Jig, you can minimize time spent in precision machining and post-machining of labial (or Buccal) side texture and undercut area.

Wireless Auto Calibration

• Wireless Auto Calibration improves usability and accuracy, maintaining the best condition. In particular, with the Auto Calibration function for each position of pre-milled blank, you can produce the customized abutment with high accuracy.

Specifications

• Processing: Wet and Dry
• Spindle Power: AC 2.2kw
• Max. RPM: 60,000
• A.T.C: 20
• Tool Shank (mm): Ø6
• Motor: Servo
• Drive Mechanism: Ball Screw
• Way System: Linear Guide
• Machine Size (W*D*H): 1078*921*889mm
• Rotation Angle: 360˚/ +40˚ ~ -31.5˚
• Weight: 360 kg / 110 kg
• Clamping System: Zero Point
• Number of Jig: 12

Packaging

• 1 x Arum 5x 500L CAD/CAM Milling Machine

Directions for Use

• Setup: Ensure proper installation of the milling machine, including connecting it to a compatible computer with CAD/CAM software.
• Material Selection: Choose the suitable dental material (e.g., CoCr, Titanium, Zirconia) for the specific dental component you intend to create.
• Material Loading: Securely load the chosen material into the machine’s holder.
• Software Configuration: Configure the CAD/CAM software on the connected computer to work with the 5X-500L.
• Design and Toolpaths: Use the CAD/CAM software to design the dental component and generate the necessary toolpaths for milling.
• Machine Calibration: Follow calibration instructions to ensure precise milling.
• Tool Preparation: Prepare the appropriate milling tools for the specific component and material.
• Milling Operation: Start the milling process through software controls. The machine will follow the toolpaths to shape the dental component.
• Monitoring: Keep an eye on the milling process via the control panel or software interface.
• Quality Check: After milling, inspect the dental component for accuracy and finish.
• Material Replacement: If required, replace the material for subsequent jobs.
• Maintenance: Clean and maintain the milling machine and tools per instructions.
• Integration: Incorporate the milled dental component into the patient’s treatment plan.
