Apex Konnect Dental Implants 4.20mm

Description

The Apex Konnect Dental Implant 4.20mm is a premium-grade implant engineered for reliable and predictable outcomes in moderate to wide alveolar ridges. Manufactured from biocompatible Grade V ELI/Grade 23 titanium alloy, it combines high strength, corrosion resistance, and excellent osseointegration properties. Its progressive high-angle (HA) thread profile and concave apex with cutting flutes allow precise bone engagement while preserving autogenous bone for enhanced primary stability. The conical connection ensures platform switching, a stable biological seal, and precise prosthetic fit. Ideal for cases with sufficient bone width and density, this implant is suitable for single-tooth restorations, partial edentulism, or immediate placement in moderate ridge sites, providing fast insertion, controlled stress distribution, and long-term functional and aesthetic restoration.

Key Features

• Made from Grade V ELI/Grade 23 titanium alloy for high strength and corrosion resistance
• Progressive HA thread profile for optimized primary stability

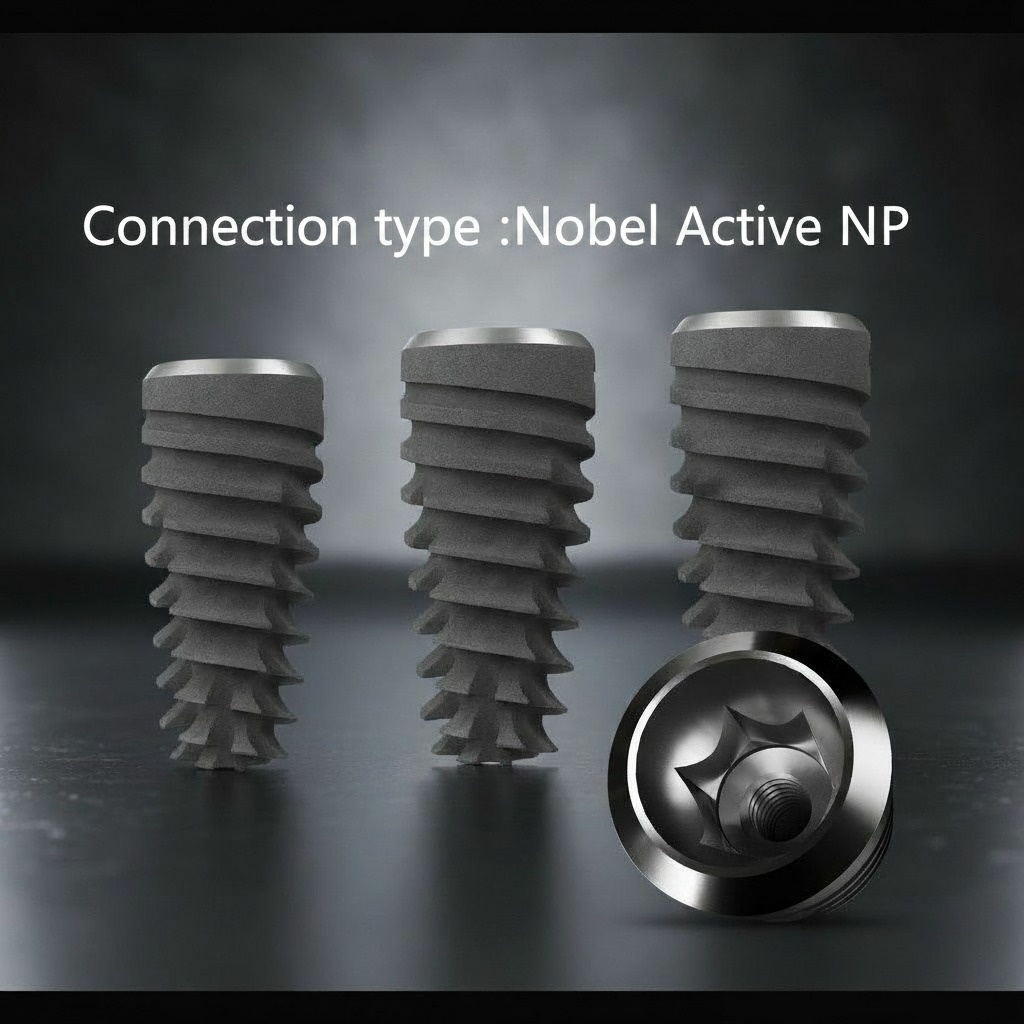

• Nobel Active NP connection type
• Internal hex conical connection for precise prosthetic fit
• Supports platform switching and biological seal
• Self-tapping design for minimal instrumentation
• Balanced compressive and cutting forces for atraumatic insertion
• Enhanced osseointegration via nano topography and surface charge
• Faster insertion and improved performance in immediate implant placement
• Anatomical tapered design for optimal soft tissue support

Specifications

• Diameter: 4.20 mm
• Length: 9mm,11mm,13mm
• Material: Biocompatible Titanium Alloy, Grade V ELI / Grade 23
• Connection type: Nobel Active NP
• Tensile Strength: ≥ 860 MPa
• Elongation: 10%
• Oxygen Content: ≤ 0.13%
• Thread Profile: Progressive High-Angle (HA)
• Tip Design: Concave apex with cutting flutes
• Platform Switching: Yes, via 12° Morse taper
• Surface Technology: Nano topography modification and bioactive surface
• Use: Immediate and conventional implant placement, suitable for low-density bone

Implant 9mm Size:

• Total Length: 9mm
• Threads Heights: 7.9mm

Implant 11mm Size:

• Total Length: 11mm
• Threads Heights: 9.9mm

Implant 13mm Size:

• Total Length: 13mm
• Threads Heights: 11.9mm

Packaging

• 1 x Apex Konnect Dental Implant
• 1 x Cover Screw
• Click here to buy 3.50mm variant
• Click here to buy 5.0mm variant

Directions for Use

• Case Planning:
  Perform clinical and radiographic evaluation to determine implant site, bone quality, and size requirements.
• Anesthesia and Preparation:
  Administer local anesthesia and prepare the surgical site following standard aseptic protocols.
• Osteotomy Preparation: Use sequential drills from the Apex Konnect kit to prepare the implant bed according to bone density.Maintain copious irrigation to avoid overheating.
• Implant Placement: Select the appropriate 3.50mm implant.Insert implant using the surgical handpiece or torque wrench, ensuring self-tapping engagement with bone.Confirm implant depth and angulation according to prosthetic plan.
• Primary Stability Verification: Assess stability using torque measurement; ensure sufficient insertion torque for immediate or delayed loading.
• Sealing and Healing: Place healing abutment or cover screw. Suture soft tissue if required.
• Prosthetic Connection: After osseointegration, attach abutment using the internal hex connection.Ensure platform switching and optimal biological seal.
• Post-Operative Care: Provide patient instructions, prescribe antibiotics or analgesics as needed, and schedule follow-up for monitoring healing and restoration.

Additional Information

• Country of Origin: India
• Manufacturer: Kamal Encom Industries Limited

Warranty & Service

• Warranty is not applicable for this product.
