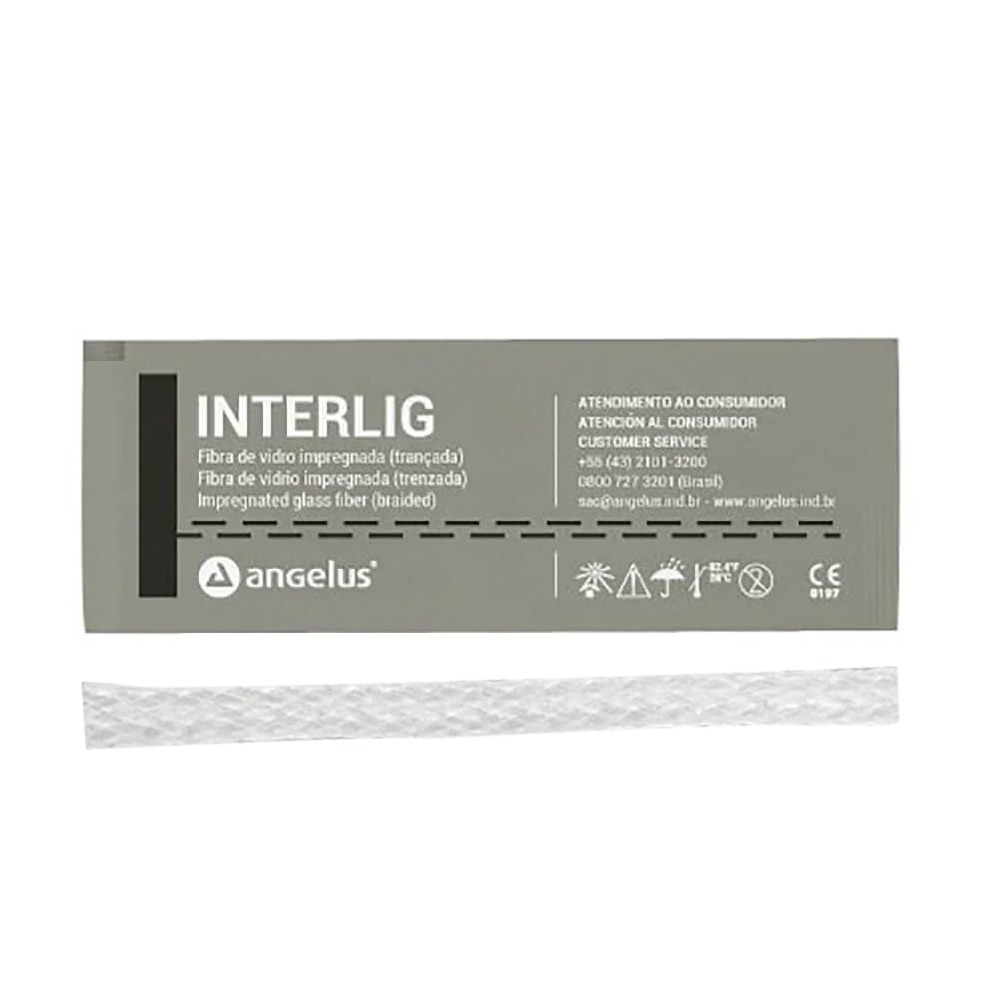

Angelus Interlig Single Patient Strip (Pack of 4)

Description

Angelus Interlig – Braided glass fiber impregnated with light-cured composite resin

Interlig is a reinforced composite material with glass fibers, for use in the clinic, with a range of applications: temporary periodontal or orthodontic immobilization, for emergency treatment of teeth lost due to periodontitis, pre-surgical splinting, for the reinforcement structure of fi xed prosthesis, either mediate or immediate, for making intraradicular cores, for space retaining in primary or permanent dentition, for reinforcement of acrylic structure (provisional, total prostheses), for reinforcement of large restorations of composite resin.

Interlig glass fibers are intertwined, which facilitates the use by the dentist. Their maleability is superior than that of the polyethylene fibers.

Interlig can be cut with any cutting instrument, and does not require special equipment. The glass fibers  are impregnated with light-cured composite resin, and for this reason, no other type of adhesive or resin is needed to impregnate them. Pre-impregnation facilitates handling and improves bonding between the glass fibers and the composite resin.

The fibers are pre-impregnated with an unfilled resin matrix, using an immersion process with controlled time and temperature, in order to guarantee complete absorption and, consequently, guaranteeing the better mechanical performance of the product.

Indications :

• Splinting in Periodontics, Orthodontics, and of avulsed or extracted
• Reinforcement of resin-retained fixed bridges (with natural or artificial teeth) and temporarily fixed bridges made directly (in the dental office) or indirectly (in the lab)
• Reinforcement and repair of acrylic resin
• Fabrication of space retainers in pediatric dentistry
• Reinforcement of large restorations.

Key Features

Aesthetics: the translucency of Interlig® fibers and of the resin matrix provides high
aesthetic resolution;

Strength: the structural composition of Interlig® fibers and their preparation for dental
use ensure their high resistance to bending, ensuring their indication for a wide range
of clinical situations;

Versatility of use: Interlig width can be adapted for use in various clinical activities;

Excellent bonding to composite resin: the pretreatment of the Interlig® fibers allows
for perfect adhesion to resins in use in the clinic;

Convenience of use: does not require special tools for cutting and comes already
impregnated with resin;

Reversible and minimally invasive technique: due to its adhesion to the adhesive and
resin systems, work done with Interlig® does not require invasion of the tooth structure;

Time-saving: work with Interlig can be performed directly in the mouth, allowing for
its completion in one session;

Low cost: compared to traditional techniques, using Interlig® allows you to perform
more attractive and durable work, with a better cost-benefit ratio;

Packaging in sachets: Interlig comes wrapped in special sachets providing easy
handling and protection of the fibers against the action of light and heat.

Specifications

• Fiber structure: Intertwined scaffold
• Optical:  Translucent
• Thickness: 0.2 mm
• Width: 2 mm
• Length: 8.5 cm
• Polymerization time : 20 sec. per segment

Composition :

• Glass fibers (weight) – 60 ± 5%.

• Impregnated resin (weight) 40 ± 5%: Bis-GMA
• Diurethane
• Barium glass
• Silicon dioxide
• Catalysts

Packaging

• Angelus Interlig Single Patient Strip (Pack of 4)

Directions for Use

TECHNIQUE FOR USE -:

A. PERIODONTAL SPLINT

• Pre-op;
• Isolate with a rubber dam (ideally) and place wedges interproximally to help controlling the flow of resin in these areas;
• With a pencil, delineate the area for cutting a groove; (Cutting a groove is an optional procedure that depends on the clinical situation).
• Make a 0.8 mm deep x 2.0 mm wide groove;
• Etch with 37% phosphoric acid for 30 seconds; wash and dry (areas of exposed dentin should not be desiccated);
• Apply the adhesive FUSION-DURALINK system (same procedures used for direct composite resin restorations);
• Light-cure all segments of the splint site for 20 seconds each;
• Fill half of the groove with a hybrid or micro hybrid composite resin (microfil resins should not be used in splinting);
• Cut a section of INTERLIG slightly shorter than the length of the groove; position INTERLIG® in the groove and press it towards the composite resin;
• Gently pressing, light-cure each segment of the splint for 20 seconds; curing of non-pressed areas should be avoided by covering them with an aluminum foil;
• Apply a second layer of composite resin to cover the groove totally; the resin must also be placed slightly beyond the limits of the groove;
• Light-cure each segment for 40 seconds;
• Remove the excess of resin, check the occlusion, and adjust it if necessary; proceed with finishing and polishing;
• Apply a final layer of fluid resin (adhesive) to fill any irregularity or superficial bubbles and voids; light-cure all segments for 20 seconds each;

B. DIRECT FIXED BRIDGE

• Pre-op;
• Mark the site where the root will be cut after the extraction;
• Area after tooth removal;
• Cut the root 1 to 2 mm apically to the mark considering soft tissue shrinkage during the healing process; shaping and polishing of the apical end of the tooth should produce a pontic-like, smooth, and ovate design;
• Open the canal through the root, remove all pulpal tissue and fill the canal with composite resin (phosphoric acid and an adhesive system must be used);
• Isolate with a rubber dam and cut a groove (0.8 mm deep x 2.0 mm wide) on the abutment teeth and on the extracted tooth;
• Fix the extracted tooth on the desired site with a small amount of composite resin placed facially; do not acid-etch now because this composite resin will be removed later; light-cure the resin;
• Acid-etch (37% phosphoric acid) for 30 seconds; wash and dry without desiccating any exposed dentin;
• Apply the adhesive FUSION-DURALINK  system, wait for 20 seconds, and remove the excess of bonding agent with a light stream of air; light-cure each segment for 20 seconds;
• Apply a layer of a hybrid or micro hybrid composite resin filling half of the groove;
• Measure and cut INTERLIG® with a scalpel or scissors in a slightly shorter size than the groove to facilitate insertion;
• Place INTERLIG in the groove, press it, and light-cure each segment for 40 seconds; curing of non-pressed areas should be avoided by covering them with an aluminum foil;
• Apply a new layer of composite resin to cover INTERLIG completely and fill the groove; the resin must be placed a little beyond the limits of the groove; light-cure for 40 seconds;
• Remove excess resin, check the occlusion, and adjust it if necessary; proceed with finishing and polishing; apply a layer of fluid resin (adhesive) to fill any irregularity or superficial bubbles and voids; light-cure all segments for 20 seconds each;
• Final result.

C. INDIRECT FIXED BRIDGE (FABRICATED ON A WORKING CAST)

• In the mouth, prepare a groove (0.8 mm deep x 0 mm wide) on the abutment teeth and take the impression;
• On the working cast, paint the groove and its adjacent areas with a thin layer of a release agent;
• To be used as a pontic, select an acrylic resin denture tooth or make a tooth with a porcelain or composite resin;
• Apply the adhesive FUSION-DURALINK system and light-cure for 20 seconds;
• Insert a layer of light-cured hybrid or micro hybrid composite resin to fill half of the groove; do not cure;
• Measure and cut INTERLIG with a scalpel or scissors in a slightly shorter size than the groove to facilitate insertion; place INTERLIG  in the groove;
• Press it and light-cure each segment for 40 seconds; curing of non-pressed areas should be avoided by covering them with an aluminum foil;
• Apply a new layer of composite resin to cover INTERLIG completely and fill the groove; light-cure for 40 seconds;
• With carbide burs or discs, trim the stone to release the bridge; the restoration should not be forced out of the working cast to avoid the risk of fracturing the connections; proceed with the final adjustments and polishing;
• Bridge ready; it must be cemented with an adhesive technique (adhesive system and a composite resin or resin cement).

D. REINFORCEMENT OF TEMPORARY ACRYLIC RESIN BRIDGES

• Cut an 8 mm deep x 2.0 mm wide lingual groove on the bridge;
• Apply the adhesive FUSION-DURALINK system on the groove and light-cure for 20 seconds;
• Measure and cut INTERLIG with a scalpel or scissors in a slightly shorter size than the groove to facilitate insertion;
• Insert a layer of light-cured hybrid or micro hybrid composite resin to fill half of the groove; do not cure;
• Place INTERLIG in the groove;
• Press it and light-cure each segment for 40 seconds; curing of non-pressed areas should be avoided by covering them with an aluminum foil;
• Apply a new layer of composite resin to cover INTERLIG  completely and fill the groove; light-cure each segment for 40 seconds;
• Proceed with the final adjustments and polishing;
• Final result.

PRECAUTIONS -:

• The components of INTERLIG may be allergenic. Avoid contact with oral tissues, skin & eyes. Use gloves,  mask & eye protection. If accidental contact occurs, wash with water. If necessary, seek medical attention.
• Keep it in a dry, cool place (below 28°C/ 82.4°F), protected from light, eugenol products, and excessive heat (furnaces, sterilizers).
• Put the remaining fiber in the package immediately after use to avoid excessive exposure to environmental light.

WARNINGS -:

• INTERLIG®must always be covered by the composite resin; any exposed fiber should be gently removed with burs and the area corrected with a new layer of composite
• Structures reinforced with INTERLIG®should not create occlusal interferences; always check
• Harmful habits (grinding, clenching, biting objects) should be corrected before indicating restorations reinforced with INTERLIG®.

Additional Information

Country of Origin: Brazil

Manufacturer:
Angelus Indústria de Produtos Odontológicos S/A
CNPJ: 00.257.992/0001-37, I.E.: 60128439-15
Rua Waldir Landgraf, 101, Bairro Lindóia, Londrina, Paraná, Brazil

Packer:
Angelus Indústria de Produtos Odontológicos S/A
Rua Waldir Landgraf, 101, Bairro Lindóia, Londrina, Paraná, Brazil

Imported & Distributed By:
Dental Avenue (I) Pvt. Ltd.
28-B, Udyog Vihar, Phase V, Gurugram – 122016, Haryana, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product
